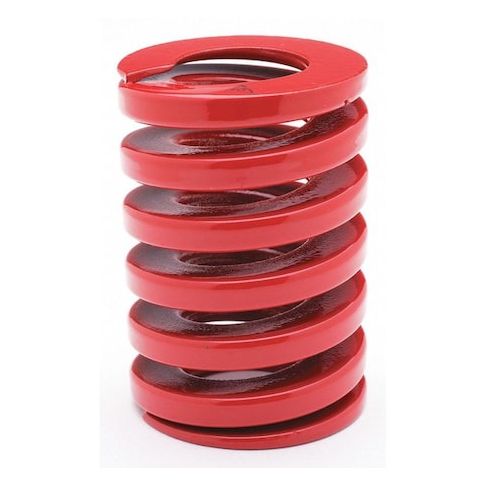

Die Spring, Red, Overall 1-13/16" L, PK5 MPN:ASM027030
Die Spring, Red, Overall 1-13/16" L, PK5
This extra heavy-duty die spring is designed for demanding applications, featuring a robust oil-tempered chrome silicone construction and a closed and ground end. With a spring rate of 12 lb./in. and a deflection of 0.08, it provides consistent and reliable performance. Its large outside diameter of 0.360 in. and small outside diameter of 0.125 in. make it suitable for a variety of uses, including metal forming and stamping. The spring's overall length of 1-13/16 in. and compact package make it ideal for use in tight spaces, while its JIS and ASTM certifications ensure high-quality performance.
Top product features:
- Oil Tempered Chrome Silicone construction
- Meets/Exceeds JIS SWOSC-V and ASTM A877 standards
- Deflection @ Load of 0.08
Top product applications:
- Die springs are used in various applications, including:
- Heavy duty machinery and equipment, such as presses and stamping machines
- Automotive applications, such as suspension systems and engine mounts
Die Spring, Extra Heavy Duty, Color Red, Oil Tempered Chrome Silicone, Finish Plain, Overall Length 1-13/16 In., Outside Dia. 1-1/16 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Deflection @ Load 0.08, Spring Rate 12 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877, Package Quantity 5
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 6
- Unit of Measure: PK
- Package Length: 1.06
- Package Width: 1.18
- Package Height: 1.06
- Package Weight: 0.28
Product info last updated on April 6, 2026 12:10am UTC
Category: Springs
