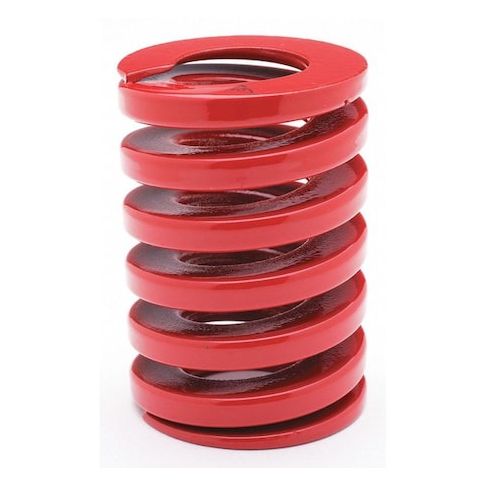

Die Spring, Red, Overall 3-1/8" L, PK5 MPN:ASM016080
Die Spring, Red, Overall 3-1/8" L, PK5
Upgrade your machinery with the Raymond Die Spring, a heavy-duty solution for demanding applications. This extra-heavy-duty spring features a robust oil-tempered chrome silicone construction, ensuring optimal performance and longevity. With a spring rate of 80 lb./in., it can withstand high loads and stresses. Its compact size and closed-end design make it ideal for use in stamping, forming, and other metalworking processes. The red color coding provides visual identification, and the JIS and ASTM compliant design ensures reliability and consistency. Perfect for industries requiring high precision and reliability, such as automotive, aerospace, and manufacturing.
Top product features:
- Oil Tempered Chrome Silicone finish for durability and corrosion resistance
- Closed and Ground ends for secure and precise fit
- 80 lb./in. Spring Rate for heavy-duty applications
Top product applications:
- Die Spring for heavy-duty machinery
- Die Spring for automotive manufacturing
- Die Spring for industrial equipment assembly
Die Spring, Extra Heavy Duty, Color Red, Oil Tempered Chrome Silicone, Finish Paint, Overall Length 3-1/8 In., Outside Dia. 5/8 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Spring Rate 80 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877, Package Quantity 5
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 4
- Unit of Measure: PK
- Package Length: 0.63
- Package Width: 3.15
- Package Height: 0.63
- Package Weight: 0.26
