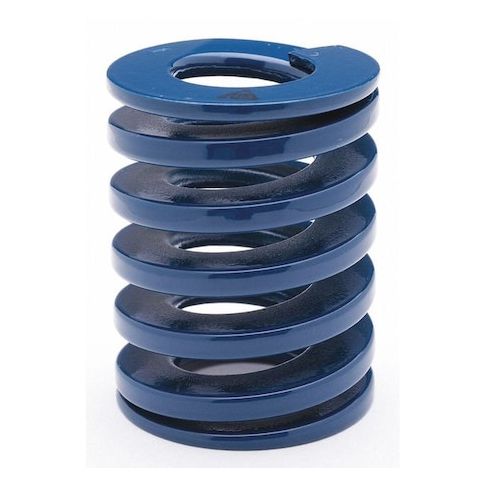

Die Spring, Blue, Overall 3-15/16" L, PK5 MPN:ASL020100
Die Spring, Blue, Overall 3-15/16" L, PK5
Upgrade your manufacturing process with the Raymond Die Spring, a heavy-duty, oil-tempered chrome silicone spring designed for demanding applications. With a spring rate of 100 lb./in., this blue die spring provides consistent performance and durability in a compact 3-15/16in. length. Its closed and ground end type ensures secure installation and long-lasting operation. Ideal for use in high-pressure die-casting, metal stamping, and other industrial processes, this die spring meets or exceeds JIS SWOSC-V and ASTM A877 standards, ensuring reliability and efficiency in your production line. Order in packs of 5 or more to meet your manufacturing needs.
Top product features:
- Oil Tempered Chrome Silicone finish for corrosion resistance
- Closed and Ground end type for secure attachment
- Spring Rate of 100 lb./in. for consistent performance
Top product applications:
- Die springs are used in:
- Automotive applications for suspension and steering systems
- Industrial machinery for heavy-duty operations
Die Spring, Extra Heavy Duty, Color Blue, Oil Tempered Chrome Silicone, Finish Paint, Overall Length 3-15/16 In., Outside Dia. 13/16 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Spring Rate 100 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877, Package Quantity 5
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 4
- Unit of Measure: PK
- Package Length: 0.79
- Package Width: 3.94
- Package Height: 0.79
- Package Weight: 0.43
Product info last updated on February 11, 2026 10:53am UTC
Category: Springs
