Die Spring, Green, Overall 1-3/8" L, PK10 MPN:ASH010035
Die Spring, Green, Overall 1-3/8" L, PK10

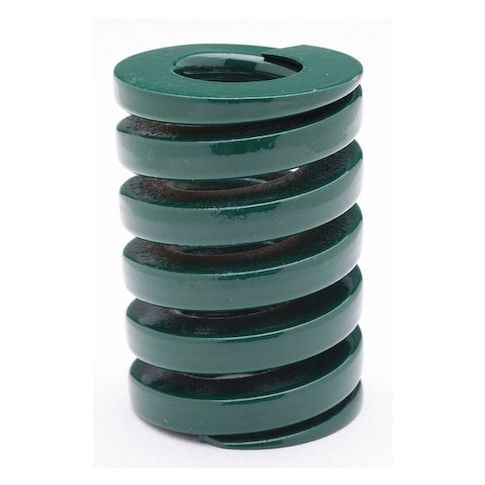

The Raymond Die Spring is a heavy-duty, oil-tempered chrome silicone spring designed for high-performance applications. With a spring rate of 35 lb./in. and a compressed length of N/A, it provides consistent and reliable performance. The spring's closed and ground end type ensures secure installation and minimizes the risk of damage. Its green color and paint finish make it easy to identify and visually inspect. Suitable for use in various industries, including manufacturing, automotive, and aerospace, this die spring meets or exceeds JIS SWOSC-V and ASTM A877 standards. Its compact size and lightweight design make it an ideal choice for applications where space and weight are limited.
Top product features:
- Oil tempered chrome silicone construction for added durability
- Closed and ground end type for secure attachment
- 35 lb./in. spring rate for consistent and controlled movement
Top product applications:
- Die springs are used in various applications, including:
- Pneumatic tool maintenance, where they help to reset and maintain the proper tension of pneumatic tools.
- Automotive assembly, where they are used to provide a precise and consistent force in the assembly process.
Die Spring, Extra Heavy Duty, Color Green, Oil Tempered Chrome Silicone, Finish Paint, Overall Length 1-3/8 In., Outside Dia. 3/8 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Spring Rate 35 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877, Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 5
- Unit of Measure: PK
- Package Length: 0.39
- Package Width: 1.38
- Package Height: 0.39
- Package Weight: 0.05
Product info last updated on February 16, 2026 12:20pm UTC
Category: Springs
