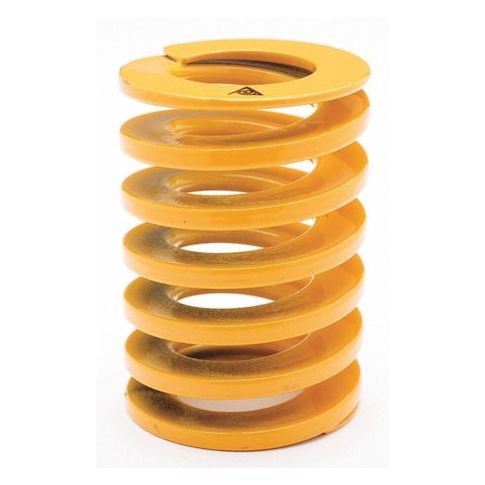

Die Spring, Yellow, Overall 1-9/16" L, PK5 MPN:ASF035040
Die Spring, Yellow, Overall 1-9/16" L, PK5
Heavy-duty die springs from Raymond are designed to withstand demanding applications, featuring a high spring rate of 40 lb./in. and a durable oil-tempered chrome silicone construction. The yellow finish and closed and ground ends provide a secure and long-lasting fit. These springs are ideal for use in machinery and equipment, such as presses and stamping dies, where high forces are applied. Their extra-heavy-duty design ensures reliable performance and extended lifespan, making them a valuable addition to any industrial setup. With a convenient package quantity of 5 and a lead time of 7 days, these springs are easy to integrate into your production process.
Top product features:
- Oil Tempered Chrome Silicone material provides durability and resistance to corrosion
- Closed and Ground end type prevents damage and wear on surrounding components
- 40 lb./in. spring rate provides consistent and controlled force application
Top product applications:
- Pneumatic cylinder return spring
- Automotive suspension spring
- Heavy duty industrial machinery spring
Die Spring, Extra Heavy Duty, Color Yellow, Oil Tempered Chrome Silicone, Finish Paint, Overall Length 1-9/16 In., Outside Dia. 1-3/8 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Spring Rate 40 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877, Package Quantity 5
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 6
- Unit of Measure: PK
- Package Length: 1.38
- Package Width: 1.58
- Package Height: 1.38
- Package Weight: 0.40
Product info last updated on February 15, 2026 5:01am UTC
Category: Springs
