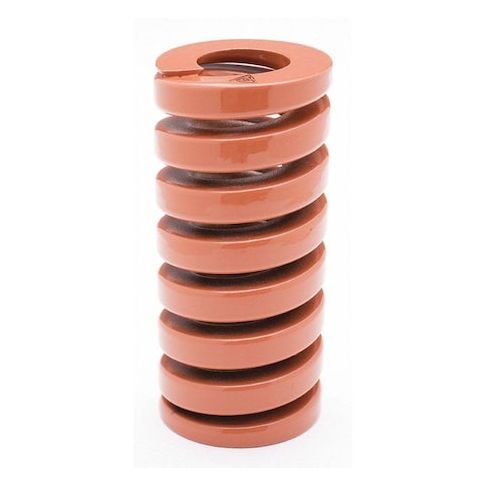

Die Spring, Brown, Overall 3-15/16" L MPN:ASB035100
Die Spring, Brown, Overall 3-15/16" L
This heavy-duty die spring from Raymond is designed to withstand demanding applications, featuring a high spring rate of 100 lb./in. and a durable oil-tempered chrome silicone finish. With a large outside diameter of 0.360 in. and a small outside diameter of 0.125 in., it provides a high level of flexibility and resistance to wear. Suitable for use in manufacturing and metalworking processes, this die spring meets or exceeds industry standards such as JIS SWOSC-V and ASTM A877. Its compact size and high strength make it ideal for applications where space is limited and high forces are required.
Top product features:
- Oil Tempered Chrome Silicone construction
- Closed and Ground End Type
- Spring Rate of 100 lb./in.
Top product applications:
- Die springs are used in automotive applications, such as in the suspension systems of heavy-duty trucks and buses.
- Die springs are used in the manufacturing process to remove excess material from metal sheets.
- Die springs are used in the aerospace industry to provide support and stability in aircraft landing gear systems.
Die Spring, Extra Heavy Duty, Color Brown, Oil Tempered Chrome Silicone, Finish Paint, Overall Length 3-15/16 In., Outside Dia. 1-3/8 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Spring Rate 100 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 8
- Unit of Measure: EA
- Package Length: 1.38
- Package Width: 3.94
- Package Height: 1.38
- Package Weight: 2.04
Product info last updated on February 27, 2026 6:22pm UTC
Category: Springs
