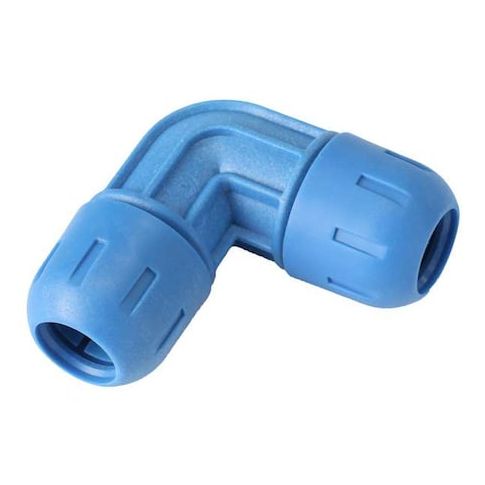

Elbow, Nylon, Comp. 3/4 in, Comp. 3/4 in MPN:F1003
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G503549041
Elbow, Nylon, Comp. 3/4 in, Comp. 3/4 in
This 3/4 inch nylon compression fitting elbow from RAPIDAIR is a versatile and reliable component for air system applications. Its 90-degree design allows for efficient routing of air lines, reducing clutter and increasing system performance. Constructed from durable nylon, this fitting can withstand high pressures up to 190 psi and temperatures up to 140°F, making it suitable for demanding industrial environments. Ideal for use in pneumatic systems, this elbow fitting is also compatible with 20mm tubing, offering a convenient and leak-free connection solution for a variety of air-powered equipment and machinery.
Top product features:
- 90 Degrees Elbow design allows for a change in direction of airflow by 90 degrees
- Compression fitting enables secure connection to 20 mm tubes
- Maximum Operating Pressure of 190 psi allows for high-pressure applications
Top product applications:
- Air Compressor Components
- Air Conditioning and Refrigeration Systems
- Air Drying and Cleaning Systems
Compression Fitting Elbow, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Nylon, Fitting Side A Tube Outer Diameter 20 mm, Fitting Side B Tube Outer Diameter 20 mm, Maximum Operating Pressure 190 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 2 5/8 in, Specific Fitting Shape 90 Degrees Elbow, System of Measurement Metric, Standards ASTM B221, ASTM B433, Color Blue, Compatible Tube Hardness 25 Shore
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 3.30
- Package Height: 1.50
- Package Weight: 0.21
Product info last updated on March 1, 2026 1:24am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
