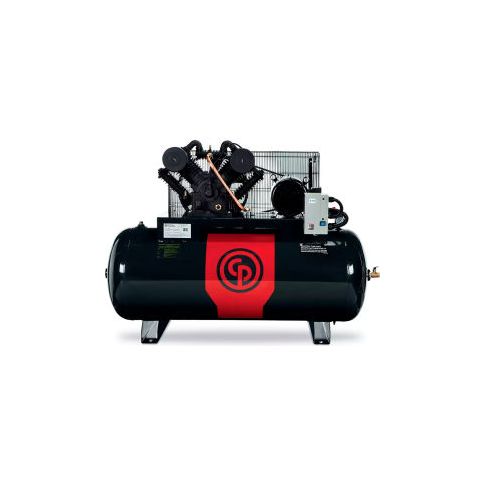

Chicago Pneumatic Two Stage Duplex Air Compressor 20 HP 120 Gal. Capacity 175 PSI 3 Phase 230V RCP-C20123D

Chicago pneumatic's iron series features all cast iron design pumps. The rcp-c duplex compressors are available up to 20 hp and can deliver up to 21 acfm on single phase and 70 on 3 phase power. Models include simplex compressors up to 10hp and duplex models from 10-20hp. The rcp-c compressors come with a full 2 year warranty (including valves). Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" two-stage splash lubricated piston hp 20 tank gal 120h voltage/phase 208-230/3 cfm 100 psi 70 max.Psi 175 weight(lb) 1395 l x w x h(in) 81 x 27 x 52 start-stop pressure switch control tank both crn & asme certified and national board registered w/asme certified safety valve on tanks and pumps fully enclosed belt guard discharge valve magnetic starter and alternator
