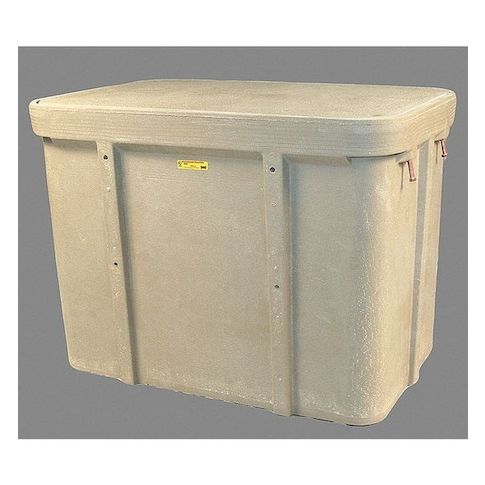

Underground Enclosure Assembly, PG Series, Blank Cover, 49-5/8 in L, 32-1/8 in W, 36 in H MPN:PG3048Z81309
Free Shipping
In Stock
This Underground Enclosure Assembly is designed for secure and protected installation of electrical equipment in underground settings. Its 8,000 lb load rating ensures reliable operation in harsh environments. The blank cover provides a clean and professional appearance, ideal for applications where branding is not required. Suitable for use in outdoor settings, such as utility and telecommunications infrastructure, this enclosure assembly also meets the needs of indoor applications, such as data centers and industrial facilities. Its durable construction and easy installation make it a versatile solution for a wide range of underground electrical enclosures.
Top product features:
- The enclosure has a usable interior length of 45 5/8 in, allowing users to install equipment within a specific space.
- The enclosure is designed to withstand a load of 8,000 lb, providing a secure and stable environment for equipment.
- The enclosure is equipped with two 3/8-16 x 4 UNC stainless steel hex head bolts for secure cover attachment.
Top product applications:
- Utility Metering and Monitoring
- Telecom and Networking Equipment Housing
- Data Center and Server Room Enclosure
The QUAZITE PG3048Z81309 is an underground enclosure assembly with a blank cover for below-grade electrical enclosure and pull box applications. It is made from monolithic polymer concrete and includes an open bottom design, a stackable construction, and a maximum load capacity of 8,000 lb. This assembly is intended for non-deliberate traffic only and provides a usable interior space sized for underground cable and connection access.
Key features of the QUAZITE PG3048Z81309 Underground Enclosure Assembly:
- Assembly style: PG series enclosure assembly.
- Material: Monolithic polymer concrete construction.
- Cover included: Supplied with a blank cover.
- Bottom style: Open bottom for below-grade installation.
- Load capacity: Rated for a maximum of 8,000 lb.
- Traffic designation: Non-deliberate traffic only.
- Stackable: Stackable design supports configuration flexibility.
- Overall dimensions: 49-5/8 in L x 32-1/8 in W x 36 in H.
- Usable interior dimensions: 45-5/8 in L x 28-1/8 in W x 33 in H.
- Cover hardware: Two stainless steel hex head bolts, 3/8-16 x 4 UNC.
- Cover pull slots: 1/2 in x 4 in slots for cover handling.
- Color: Gray.
- Standard: UL Listed to ANSI/SCTE 77 2007 Tier 8.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 33 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 53.00
- Package Width: 35.00
- Package Height: 42.00
- Package Weight: 578.00
