Surface-Mount Pump House Heater, Surface, 500/376/500 W, 120/208/240V AC, Beige MPN:WHT500
Free Shipping
In Stock

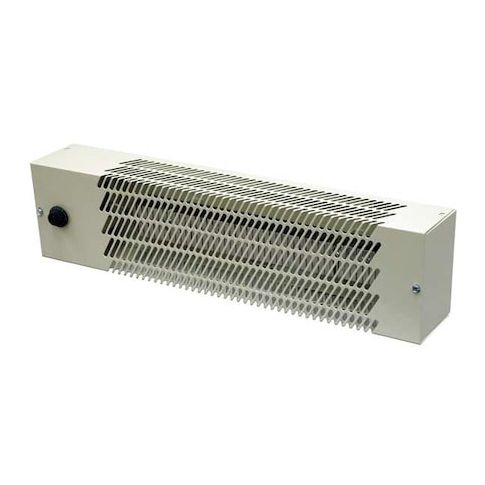

Protect sensitive equipment from freezing temperatures with the Qmark Surface-Mount Pump House Heater. Ideal for well houses, utility rooms, relay stations, pipe rooms, and basements, this automatic heater provides 24-hour protection for pipes, pumps, and equipment. Its maintenance-free design and tamperproof control box ensure safe and reliable operation. With a temperature control range of 40 to 70°F and a steel sheath for fast heat dissipation, this heater is perfect for remote locations and areas with limited access. Shipped wired for 240/208V, field conversion to 120V is quick and easy, making it a versatile solution for various applications.
Top product features:
- It provides automatic, 24-hour protection to prevent pipes, pumps, and other equipment from freezing.
- It is maintenance free and can be left unattended all winter long due to its lack of moving parts and tamperproof control box.
- It features a steel sheath and aluminum finned element that provides fast heat dissipation and a long life due to cooler sheath temperatures.
Top product applications:
- Well Houses
- Utility Rooms
- Basements
The QMARK WHT500 is a surface-mount pump house heater designed to help protect pipes, pumps, and other water, hydraulic fluid, or oil-filled equipment from freezing in spaces such as well houses, utility rooms, relay stations, pipe rooms, and basements. This convection heater uses a steel sheath, aluminum finned element and features a unit-mounted mechanical selector dial thermostat with a temperature control range of 40 to 70°F. It is shipped wired for 240/208V and can be field converted to 120V.
Key Features of the QMARK WHT500 Surface-Mount Pump House Heater:
- Heating Output: Provides 500W/375W/500W with a heating capacity of 1706/1284/1706 BtuH depending on voltage.
- Voltage: Operates on 120/208/240V AC, 1-phase, 60 Hz power.
- Thermostat: Unit-mounted thermostat with a mechanical selector dial allows temperature adjustment from 40 to 70°F.
- Heating Method: Convection heating with no moving parts.
- Construction: Steel housing with epoxy painted galvanized finish and a steel grille.
- Mounting: Surface-mount design for installation where localized freeze protection is needed.
- Size: Overall dimensions are 21 in W x 5 in H x 3-1/2 in D.
- Wiring Design: Power supply and control wiring terminate in the tamperproof control box
- the thermostat is contained within the control box.
- Listing: cETL Listed.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.40
- Package Width: 6.60
- Package Height: 4.50
- Package Weight: 4.75
