Electric Wall/Ceiling Heater Unit, 480V AC, 18A, 3 Phase, 51180 BtuH, 52 Degrees F Temp Rise MPN:MUH154
Free Shipping
In Stock
This rugged electric wall/ceiling heater unit is designed for industrial settings, suitable for factories, warehouses, garages, stairwells, power stations, and mechanical rooms. Its powerful output capacity makes it ideal for heating loading docks and other indoor/outdoor transition spaces. The unit features advanced pull-through airflow design, a specially designed venturi outlet, and an aluminum-finned heating element for efficient heat dissipation and longer lifespan. With a wide range of field-installable control kits available, this unit is adaptable to meet specific market requirements. Its compact design and durable construction make it a reliable choice for demanding industrial applications.
Top product features:
- Rugged unit heater design suitable for industrial settings
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation
- Aluminum-finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
Top product applications:
- Factories
- Warehouses
- Shipping Docks

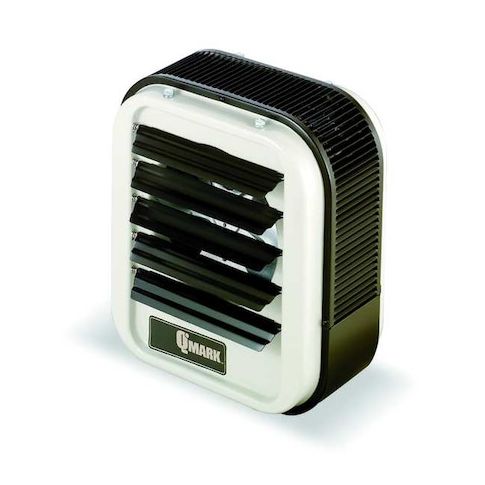

The QMARK MUH154 is a fan-forced electric unit heater for heating industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It has a 15 kW output with a heating capacity of 51,180 BtuH, operates on 480V AC, 3-phase power at 60 Hz, and uses a pull-through airflow design to move air across the heating element for air distribution. The steel housing has a polyester powder-coated beige finish, and the unit can be mounted on a wall or ceiling.
Key features:
- Fan-forced heating: Delivers 910 cfm airflow with a 52°F air temperature rise.
- Air coverage: Provides up to 35 ft horizontal air throw and up to 20 ft vertical floor coverage.
- Heating element construction: Aluminum-finned, copper-clad steel sheath element is designed for lower sheath temperature and faster heat dissipation.
- Air direction control: Includes adjustable air outlet louvers and a venturi outlet for added air throw in vertical position.
- Motor and controls: Features a completely enclosed fan motor, mechanical selector dial, fan-delay, and auto reset.
- Electrical details: Rated at 18A with a 24V AC contactor coil voltage and 3-pole switch type.
- Housing construction: Steel cabinet with beige polyester powder-coated finish.
- Mounting and size: Wall or ceiling mount design
- overall dimensions are 21-3/4 in H x 19 in W x 12-3/4 in D.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 17.20
- Package Height: 25.50
- Package Weight: 49.80
