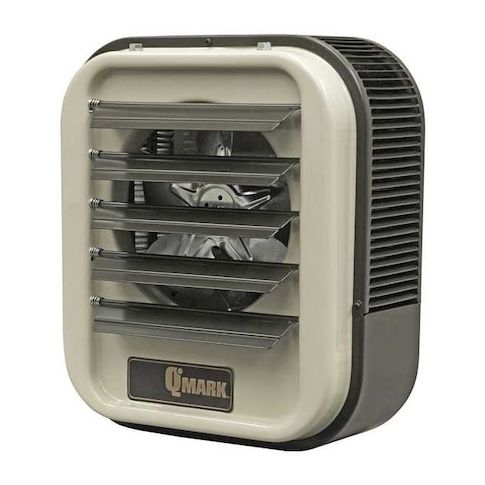

Electric Unit Heater, MUH Series, Wall/Ceiling Mount, 3 Phase, 480VAC, 50kW, 30 in H, 26-5/8 in W MPN:MUH504
Free Shipping
In Stock
This electric unit heater is a powerful solution for large spaces, providing 50kW of heat and 3,000 cubic feet per minute of air flow. Ideal for industrial, commercial, or institutional applications, it offers a horizontal air throw of up to 60 feet and vertical coverage of 63 feet. The unit is UL Listed and meets all NEC and OSHA requirements, ensuring safety and reliability. With a durable powder-coated steel housing and 1-year parts warranty, this heater is designed for long-term use. Suitable for applications such as warehouses, factories, and large offices, it provides efficient and effective heating.
Top product features:
- Air Flow 3,000 cfm
- Horizontal Air Throw 60 ft
- Requires Two-Stage Thermostat
Top product applications:
- Commercial Buildings
- Industrial Factories
- Large Warehouses
The QMARK MUH504 is an electric unit heater for wall or ceiling mounting, built for fixed-position space heating in commercial and industrial settings. This 50 kW, 480VAC, 3-phase unit moves up to 3,000 cfm and can be mounted horizontally or vertically, allowing it to be used for primary, supplementary, spot, or dual-system heating where electric unit heaters are specified.
Key Features of the QMARK MUH504 Electric Unit Heater:
- 50 kW wattage output: High-capacity electric heat output for larger heating demands.
- 480VAC, 3-phase, 50/60 Hz: Designed for use with 480-volt three-phase electrical systems.
- Airflow of 3,000 cfm: Moves a high volume of air to distribute heat through the space.
- 61°F air temperature rise: Indicates the increase in discharged air temperature across the unit.
- Wall or ceiling mounting: Supports installed heating from overhead or wall-mounted positions.
- Horizontal or vertical mounting: Unit can be oriented to suit layout and airflow requirements.
- Horizontal air throw of 60 ft and vertical floor coverage of 63 ft: Provides stated coverage distances for directional heating performance.
- Vertical mounting height of 25 ft: Lists the specified mounting height for vertical installation.
- Steel housing with powder-coated finish: Heavy-gauge steel construction with a finished exterior.
- 24V AC contactor coil voltage: Uses a 24-volt AC control circuit for the contactor.
- Requires two-stage thermostat: Intended to operate with a compatible two-stage thermostat.
- 3-pole switch type: Built with a 3-pole switching configuration.
- UL Listed: Certification rating explicitly provided for the unit.
- Overall dimensions: 30 in H x 26-5/8 in W x 17-1/4 in D.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 18 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 33.50
- Package Height: 31.00
- Package Weight: 114.00
