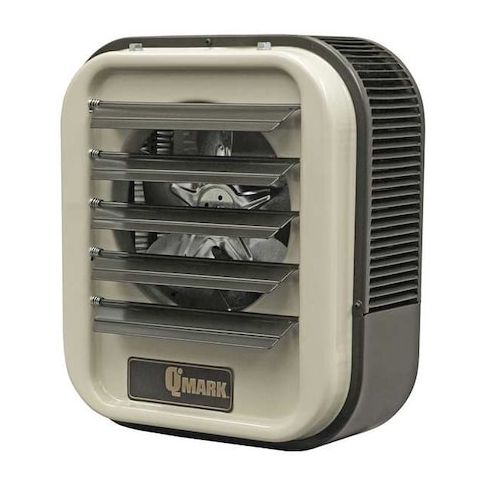

Fan Forced Electric Unit Heater, Wall & Ceiling, 1 Phase, 277VAC, 5 kW, 16 in H, 14 in W MPN:MUH0571
Free Shipping
In Stock
This rugged unit heater is designed for industrial settings, making it ideal for factories, warehouses, garages, stairwells, power stations, and mechanical rooms. Its powerful output capacity also makes it suitable for heating loading docks and transition spaces. With a range of optional control kits available, this unit can be tailored to meet specific needs. Its advanced design features, including a pull-through air flow and specially designed venturi outlet, ensure even air distribution and cooler element operation, extending the life of the heating element. This unit heater is a reliable solution for a variety of industrial applications.
Top product features:
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation
- Specially designed venturi outlet to meet required additional air throw in vertical position
- Completely enclosed fan motor
Top product applications:
- Factories
- Warehouses
- Shipping Docks
The QMARK MUH0571 is a fan-forced electric unit heater designed for heating industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping areas, power stations, and mechanical rooms. It provides 5 kW of heating output (17,065 BtuH) at 277V AC, single-phase power, with 350 cfm airflow and a 45°F air temperature rise. The steel housing has a powder-coated beige finish, and the unit can be mounted on a wall or ceiling in either horizontal or vertical positions. Adjustable air outlet louvers are included to direct heated airflow.
Key Features:
- Fan-forced heating: Pull-through airflow design moves air across the heating element for more even air distribution and cooler element operation.
- Heating element construction: Aluminum-finned, copper-clad steel sheath element supports faster heat dissipation.
- Mounting flexibility: Configured for horizontal or vertical mounting to fit different installation layouts.
- Air coverage: Provides up to 12 ft horizontal air throw and 18 ft vertical floor coverage, with vertical mounting height listed at 9 ft.
- Housing construction: Steel cabinet with powder-coated finish for commercial and industrial use areas.
- Air direction control: Includes individually adjustable discharge louvers to help direct airflow where needed.
- Controls: Mechanical selector dial with a 3-pole switch and 277V AC contactor coil voltage.
- Electrical specifications: Operates at 277V AC, 1-phase, 50/60 Hz, drawing 18A.
- Unit size: Measures 16 in H x 14 in W x 7-1/2 in D.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.70
- Package Width: 12.20
- Package Height: 20.10
- Package Weight: 20.11
