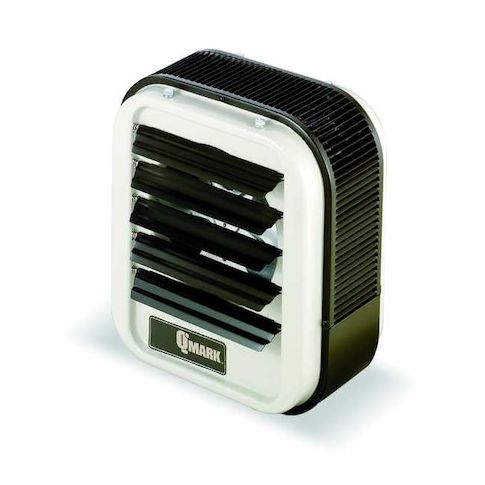

Fan Forced Electric Unit Heater, Wall & Ceiling, 1 Phase, 208/240VAC, 2.2kW/3kW, 16 in H, 14 in W MPN:MUH0321
Free Shipping
In Stock
This rugged unit heater is designed for industrial settings, suitable for use in factories, warehouses, garages, stairwells, power stations, and mechanical rooms. Its powerful output capacity makes it ideal for heating loading docks and other indoor/outdoor transition spaces. The unit features a small- to medium-case construction with 20-gauge steel, advanced pull-through air flow design, and a specially designed venturi outlet for optimal air distribution and cooling. With a range of optional control kits available, this unit is adaptable to various specifications and applications, providing efficient and reliable heat in demanding environments.
Top product features:
- Rugged unit heater suitable for industrial settings and capable of heating large spaces such as loading docks and transition areas.
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation.
- Aluminum-finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation.
Top product applications:
- Factories
- Warehouses
- Garages
The QMARK MUH0321 is a fan-forced electric unit heater for industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It operates on 208/240V AC, 1-phase power and provides 2.2 kW/3 kW of heat output, with a heating capacity of 7,500/10,200 BtuH. The steel housing has a polyester powder-coated beige finish, and the unit can be mounted on a wall or ceiling. Its pull-through airflow design moves air across the heating element for more even distribution, and the venturi outlet supports added air throw in vertical position.
Key Features:
- Fan-forced heating: Delivers 350 cfm airflow with a 27°F air temperature rise for circulated heat output.
- Heating element design: Aluminum-finned, copper-clad steel sheath element supports cooler sheath temperature and faster heat dissipation.
- Enclosed motor: Completely enclosed fan motor is suited for demanding work areas.
- Adjustable louvers: Includes adjustable air outlet louvers to direct airflow where needed.
- Fan-delay and auto reset: Built-in operating features for heater control and reset function.
- Mechanical selector dial: Uses a mechanical selector dial control type.
- Air throw coverage: Provides up to 12 ft horizontal air throw and 9 ft vertical floor coverage.
- Electrical details: 11A/12.5A, 60 Hz, with a 208/240V AC contactor coil voltage and 3-pole switch type.
- Housing and size: Steel cabinet, 16 in H x 14 in W x 7-1/2 in D.
- Field adaptability: Supports field-installable optional control kits
- requires MMB10 and UHMT1.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 12.50
- Package Height: 20.00
- Package Weight: 21.45
