Electric Wall/Ceiling Heater Unit, 480V AC, 9A, 3-Phase, 25600 BtuH, 37 Degrees F Temp Rise MPN:MUH074
Free Shipping
In Stock
This rugged unit heater is designed for industrial settings, suitable for factories, warehouses, garages, stairwells, power stations, or mechanical rooms. Its powerful output capacity makes it ideal for heating loading docks and other indoor/outdoor transition spaces. The unit's advanced features include a pull-through air flow design, specially designed venturi outlet, and aluminum-finned heating element for even air distribution and cooler element operation. This heater is built to last with 20-gauge steel construction and can be controlled with a wide range of optional kits. Its compact size makes it easy to install in tight spaces.
Top product features:
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation.
- Aluminum-finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation.
- Completely enclosed fan motor.
Top product applications:
- Factories
- Warehouses
- Shipping Docks

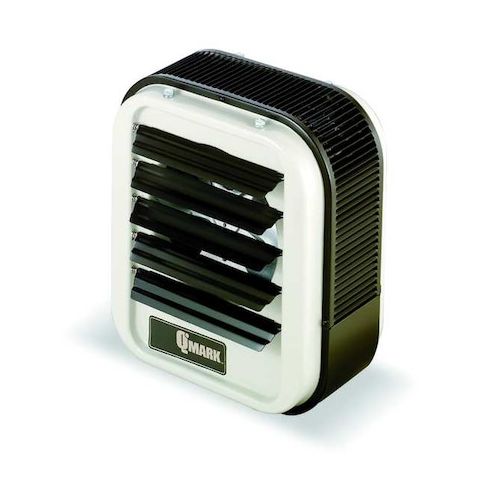

The QMARK MUH074 is a fan-forced electric unit heater designed for industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It has a 7.5 kW output with a heating capacity of 25,600 BtuH and uses a pull-through airflow design that moves air across the heating element for more even air distribution. The steel housing has a beige polyester powder-coated finish, and the unit can be mounted on a wall or ceiling.
Key features of the QMARK MUH074 Electric Unit Heater:
- Fan-forced heating: Delivers 650 cfm airflow with a 37°F air temperature rise.
- Heating element design: Aluminum-finned, copper-clad steel sheath element supports cooler sheath temperature and faster heat dissipation.
- Air direction control: Includes adjustable air outlet louvers with an 18 ft horizontal air throw and 14 ft vertical floor coverage.
- Motor and operation: Completely enclosed fan motor with fan-delay and auto reset features.
- Controls: Uses a mechanical selector dial and a 24V AC contactor coil voltage.
- Electrical configuration: 480V AC, 3-phase, 60 Hz, 9A.
- Construction: Steel cabinet with polyester powder-coated finish.
- Mounting and size: Wall or ceiling mount design
- overall dimensions are 21-3/4 in H x 19 in W x 7-1/2 in D.
- Field adaptability: Supports field-installable optional control kits
- requires MMB10 and UHMT1.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 12.00
- Package Height: 25.00
- Package Weight: 35.00
