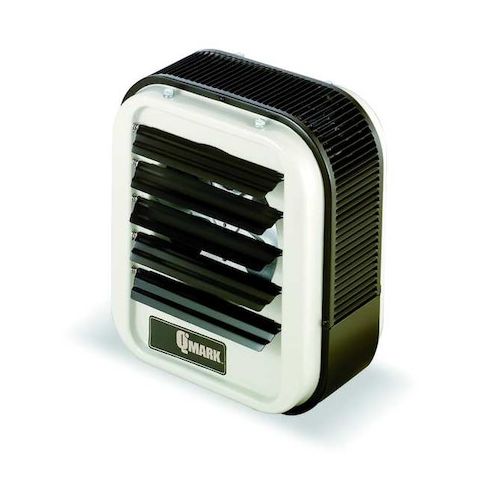

Fan Forced Electric Unit Heater, Wall & Ceiling, 1 or 3 Phase, 208/240VAC, 5.6kW/7.5kW, 21-3/4 in H MPN:MUH072
Free Shipping
In Stock
This rugged unit heater is designed for industrial settings, including factories, warehouses, garages, and power stations. Its powerful output capacity makes it suitable for heating loading docks and transition spaces. The unit features advanced airflow design, a specially designed venturi outlet, and an aluminum-finned heating element for efficient heat distribution and extended life. It's ideal for spaces with high ceilings or large areas to heat. With a range of optional control kits available, this unit heater is adaptable to various specifications and can be easily integrated into existing systems.
Top product features:
- Fan Forced Electric Unit Heater, Wall & Ceiling, 1 or 3 Phase, 208/240VAC, 5.6kW/7.5kW, 21-3/4 in H from Qmark
- This rugged unit heater works well in industrial settings. Install it in factories, warehouses, garages, stairwells, power stations or mechanical rooms. Its powerful output capacity even makes it suitable for heating your loading dock or other indoor/outdoor transition spaces.
- •Wide range of optional control kits are field-installable, increasing the unit’s adaptability to specification market
Top product applications:
- Factories
- Warehouses
- Garages
The QMARK MUH072 is an electric unit heater with a fan-forced heating method for use in industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It provides 5.6/7.5 kW of output with a heating capacity of 19,100/25,600 BtuH on 208/240V AC, 1 or 3-phase power. The steel cabinet uses a polyester powder-coated beige finish, and the pull-through airflow design moves air across the heating element for more even distribution. This model can be mounted on a wall or ceiling and includes adjustable air outlet louvers for directing airflow.
Key Features of the QMARK MUH072 Electric Unit Heater:
- Fan-forced operation: Delivers 650 cfm airflow with a 37°F air temperature rise.
- Heating output: Rated at 19,100/25,600 BtuH with 5.6/7.5 kW wattage output.
- Voltage and phase: Operates on 208/240V AC at 60 Hz and supports 1 or 3-phase power.
- Air direction: Includes adjustable louvers with horizontal air throw up to 18 ft and vertical floor coverage up to 14 ft.
- Controls: Uses a mechanical selector dial and a 24V AC contactor coil voltage.
- Motor and operation features: Includes an enclosed motor, fan-delay, and auto reset functions.
- Housing construction: Steel housing with polyester powder-coated finish in beige.
- Mounting and size: Designed for wall or ceiling mounting
- overall dimensions are 21-3/4 in H x 19 in W x 7-1/2 in D.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.30
- Package Width: 12.00
- Package Height: 25.10
- Package Weight: 33.95
