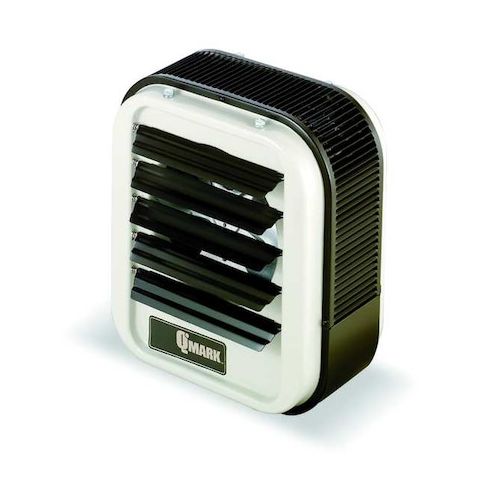

Electric Wall & Ceiling Heater, 1 Phase, 208VAC, 12A, 16 in H x 14 in W x 7-1/2 in D MPN:MUH0381
Free Shipping
In Stock
This rugged unit heater is designed for industrial settings, ideal for use in factories, warehouses, garages, stairwells, power stations, and mechanical rooms. Its powerful output capacity makes it suitable for heating loading docks and other transition spaces. The unit features advanced airflow design, a specially designed venturi outlet, and an aluminum-finned heating element for efficient heat dissipation and extended life. With a range of field-installable control kits available, this heater is adaptable to various specifications and applications, providing reliable and efficient heating in demanding environments.
Top product features:
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation
- Specially designed venturi outlet to meet required additional air throw in vertical position
- Aluminum-finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
Top product applications:
- Factories
- Warehouses
- Garages
The QMARK MUH0381 is a fan-forced electric unit heater for industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It operates on 208V AC, single-phase power and provides 3 kW of heat output with a heating capacity of 10,200 BtuH. Its pull-through airflow design moves air across the heating element for more even air distribution, and the venturi outlet supports added air throw when mounted in a vertical position.
Key Features of the QMARK MUH0381 Electric Unit Heater:
- Fan Forced Heating: Delivers 350 cfm airflow with a 27°F air temperature rise.
- Heating Element Design: Aluminum-finned, copper-clad steel sheath element is designed for lower sheath temperature and faster heat dissipation.
- Enclosed Motor: Motor is completely enclosed for use in demanding indoor work areas.
- Adjustable Louvers: Includes adjustable air outlet louvers to direct heated air where needed.
- Fan-Delay and Auto Reset: Built-in operating features for heater control.
- Control Type: Mechanical selector dial.
- Mounting Options: Designed for wall or ceiling mounting
- vertical floor coverage is 9 ft and horizontal air throw is 12 ft.
- Housing Construction: Steel housing with a beige polyester powder-coated finish
- cabinet construction uses 20-gauge steel on small to medium cases and 18-gauge steel on larger cabinets.
- Electrical Specifications: 208V AC, 1-phase, 60 Hz, 14.5A, with 208V AC contactor coil voltage and 3-pole switch.
- Dimensions: 16 in H x 14 in W x 7-1/2 in D.
- Field-Installable Options: Supports a range of optional control kits for added configuration flexibility.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 12.10
- Package Height: 20.00
- Package Weight: 21.10
