Electric Wall/Ceiling Heater Unit, 480V AC, 6A, 3-Phase, 17000 BtuH, 45 Degrees F Temp Rise MPN:MUH0541
Free Shipping
In Stock
This rugged electric wall/ceiling heater unit is designed for industrial settings, ideal for factories, warehouses, garages, stairwells, power stations, and mechanical rooms. Its powerful output capacity makes it suitable for heating loading docks and other indoor/outdoor transition spaces. The unit features advanced air flow design, a specially designed venturi outlet, and an aluminum-finned heating element for efficient heat dissipation and longer lifespan. With a wide range of optional control kits available, this unit is adaptable to various specifications and applications, providing reliable and efficient heating solutions for various industrial spaces.
Top product features:
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation.
- Specially designed venturi outlet to meet required additional air throw in vertical position.
- Aluminum-finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation.
Top product applications:
- Factories
- Warehouses
- Shipping Docks

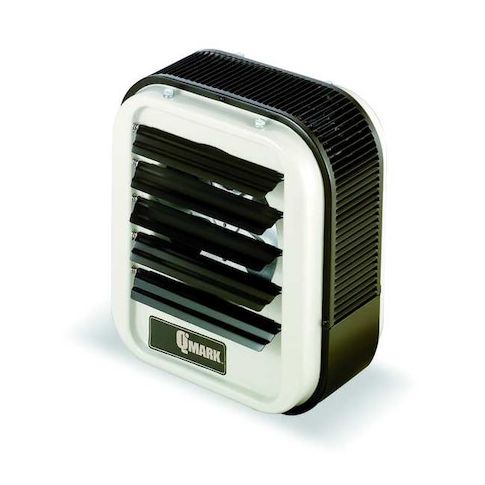

The QMARK MUH0541 is a fan-forced electric unit heater designed for heating industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It provides 5 kW of heat output, equal to 17,000 BtuH, with 350 cfm air flow and a 45°F air temperature rise. The steel housing has a beige polyester powder-coated finish, and the unit can be mounted on a wall or ceiling for horizontal or vertical air delivery.
Key features of the QMARK MUH0541:
- Fan-forced heating: Uses a pull-through airflow design to move air across the heating element for more even air distribution.
- Heating output: Rated at 5 kW and 17,000 BtuH for small to medium area heating applications.
- Air delivery: Provides 350 cfm, 12 ft horizontal air throw, and 9 ft vertical floor coverage.
- Adjustable louvers: Includes adjustable air outlet louvers to direct heated air where needed.
- Enclosed motor: Fan motor is completely enclosed.
- Fan-delay and auto reset: Built-in operating features that support heater function during use.
- Heating element: Aluminum-finned, copper-clad steel sheath element designed for cooler sheath temperature and faster heat dissipation.
- Controls: Mechanical selector dial with 24V AC contactor coil voltage.
- Electrical configuration: 480VAC, 3 phase, 60 Hz, 6A, with a 3-pole switch.
- Housing construction: Steel cabinet with a polyester powder-coated beige finish.
- Mounting and size: Wall or ceiling mount design
- overall dimensions are 16 in H x 14 in W x 7-1/2 in D.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.60
- Package Width: 12.10
- Package Height: 20.00
- Package Weight: 24.20
