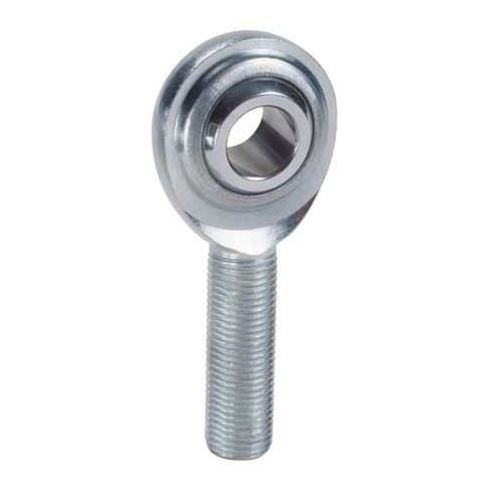

Male, Rod End, LH, 6/6.065mm MPN:MCML6
Male, Rod End, LH, 6/6.065mm
This high-quality Male Rod End from QA1 is designed for light-duty applications, featuring a carbon steel housing and alloy steel ball with a 52100 grade for durability. The spherical rod end has a 6mm bore diameter and a 19mm head outside diameter, allowing for smooth movement and rotation. With a maximum ball swivel of 23 degrees, it's ideal for use in machinery, equipment, and vehicles where precise motion is required. Its compact size and lightweight design make it perfect for a range of applications, from automotive to industrial and manufacturing.
Top product features:
- Spherical design allows for smooth and flexible movement in multiple directions.
- Threaded shank with left-hand direction provides secure and controlled mounting.
- Chrome-plated carbon steel housing resists corrosion and wear.
Top product applications:
- Light Duty
- Automotive Suspension
- Industrial Equipment
Spherical Rod End, System of Measurement Metric, Bore Diameter 6 mm, Head Outside Diameter 19 mm, Head Width 6.25 mm, Shank Thread Length 22 mm, Shank Thread Size M6x1.0, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 12.7 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 9 mm, Maximum Ball Swivel 23 Degrees , Overall Length 45.5 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 0.75
- Package Height: 0.35
- Package Weight: 0.04
Product info last updated on February 2, 2026 2:24pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
