Male, Rod End, RH, 6/6.065mm MPN:MCMR6
Male, Rod End, RH, 6/6.065mm

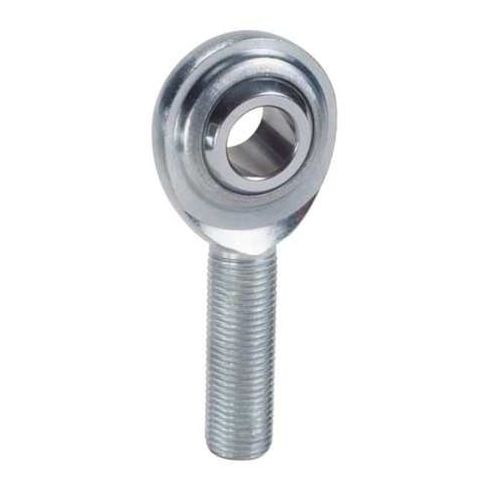

This QA1 male, rod end features a spherical design with a right-hand thread, making it ideal for applications that require precise movement and rotation. With a bore diameter of 6 mm and a ball diameter of 12.7 mm, this rod end provides a smooth and reliable connection point for a variety of systems. Its light-duty rating and maximum ball swivel of 23 degrees make it suitable for use in applications such as robotics, automotive, and aerospace, where precision and reliability are crucial. Its compact size and chrome-plated finish also make it a great option for space-constrained projects.
Top product features:
- Spherical design allows for smooth, multi-axis movement and rotation.
- Chrome plated housing provides corrosion resistance and durability.
- Threaded shank with M6x1.0 thread size enables secure attachment to other components.
Top product applications:
- Light Duty
- Industrial Machinery
- Automotive Steering Systems
Spherical Rod End, System of Measurement Metric, Bore Diameter 6 mm, Head Outside Diameter 19 mm, Head Width 6.25 mm, Shank Thread Length 22 mm, Shank Thread Size M6x1.0, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 12.7 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 9 mm, Maximum Ball Swivel 23 Degrees , Overall Length 45.5 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.35
- Package Weight: 0.04
Product info last updated on March 21, 2026 3:38am UTC
Category: Bearings, V-belts and Power Transmission Equipment
