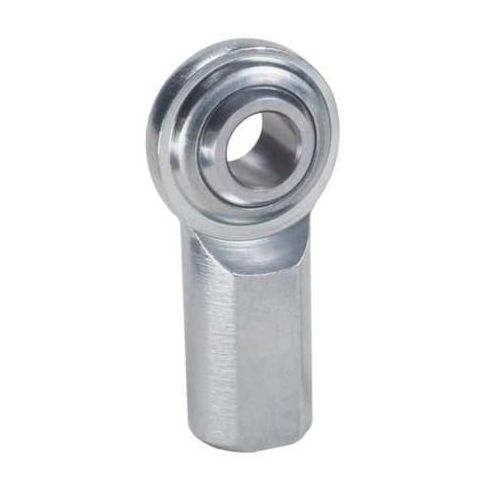

Spherical Rod End, Female Plain, 8 mm Bore Dia, Right Hand Thread, Alloy Steel MPN:MCFR8
Spherical Rod End, Female Plain, 8 mm Bore Dia, Right Hand Thread, Alloy Steel
Elevate your machine's performance with QA1's Female, Rod End, RH, 8/8.065mm. This light-duty spherical rod end features a carbon steel housing with a chrome-plated finish, ensuring durability and corrosion resistance. Its M8x1.25 thread size and 17mm thread length provide a secure connection, while the 28-degree maximum ball swivel allows for smooth motion. Ideal for applications where precision and reliability are crucial, this rod end is perfect for use in robotics, automation, and other machinery where space is limited. Its compact design and precision engineering make it a valuable addition to any machine, enhancing performance and reducing wear.
Top product features:
- Spherical design allows for smooth and flexible movement in multiple directions.
- Right-hand thread direction enables easy installation and secure fastening.
- Chrome-plated housing provides corrosion resistance and durability.
Top product applications:
- Light Duty
- General Engineering
- Automotive
Spherical Rod End, System of Measurement Metric, Bore Diameter 8 mm, Head Outside Diameter 22.25 mm, Head Width 8 mm, Shank Thread Length 17 mm, Shank Thread Size M8x1.25, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 15.88 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 12 mm, Maximum Ball Swivel 28 Degrees , Overall Length 47.1 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 0.47
- Package Height: 6.00
- Package Weight: 0.09
Product info last updated on February 4, 2026 5:30pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
