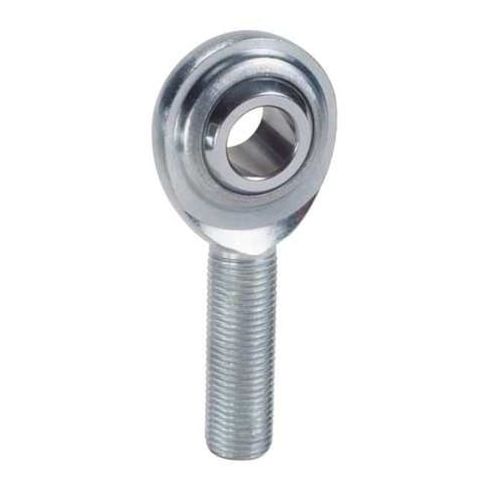

Male Rod End, LH, 1/4-28 MPN:CML4
Male Rod End, LH, 1/4-28
Enhance your machinery's performance with QA1's Male Rod End, LH, 1/4-28. This spherical rod end features a 1/4-inch bore diameter and 3/4-inch head outside diameter, making it ideal for light-duty applications. The left-hand thread direction and 1-inch shank thread length provide secure connections. The alloy steel ball and chrome-plated carbon steel housing ensure durability and corrosion resistance. With a maximum ball swivel of 27 degrees, this rod end allows for smooth movement and flexibility. Suitable for use in automotive, industrial, and agricultural applications, this rod end provides reliable performance and long-lasting service.
Top product features:
- Spherical design allows for 27 degrees of ball swivel
- Thread size is 1/4 In.-28 for secure connection
- Carbon steel housing is chrome plated for durability
Top product applications:
- Light Duty
- Automotive
- Industrial Equipment
Spherical Rod End, System of Measurement Inch, Bore Diameter 1/4 in, Head Outside Diameter 3/4 in, Head Width 0.25 in, Shank Thread Length 1 in, Shank Thread Size 1/4 In.-28, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.5 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.375 in, Maximum Ball Swivel 27 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 0.70
- Package Height: 0.40
- Package Weight: 0.04
Product info last updated on March 29, 2026 9:10am UTC
Category: Bearings, V-belts and Power Transmission Equipment
