Male, Rod End, RH, 16/16.065mm MPN:MCMR16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5815135

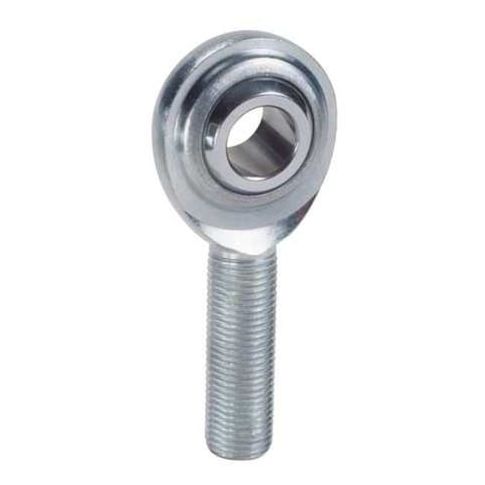

Male, Rod End, RH, 16/16.065mm
This high-performance spherical rod end is designed for light-duty applications where precision and reliability are crucial. With a carbon steel housing and alloy steel ball, it provides a durable and long-lasting solution. The right-hand thread and metric system make it easy to integrate into existing machinery. The compact design allows for smooth movement in a wide range of industries, including automotive, aerospace, and heavy machinery. Its high swivel capability and precision ball bearing ensure smooth operation and reduced wear, making it an ideal choice for applications requiring high precision and reliability.
Top product features:
- Spherical movement is enabled through a 28.58 mm alloy steel ball.
- The product has a maximum ball swivel of 33 degrees.
- The rod end has a right-hand thread size of M16x2.0.
Top product applications:
- Light Duty
- Construction
- Agricultural Equipment
Spherical Rod End, System of Measurement Metric, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 40 mm, Shank Thread Size M16x2.0, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 28.58 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 21 mm, Maximum Ball Swivel 33 Degrees , Overall Length 85 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.70
- Package Height: 1.10
- Package Weight: 0.35
Product info last updated on March 18, 2026 3:48pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
