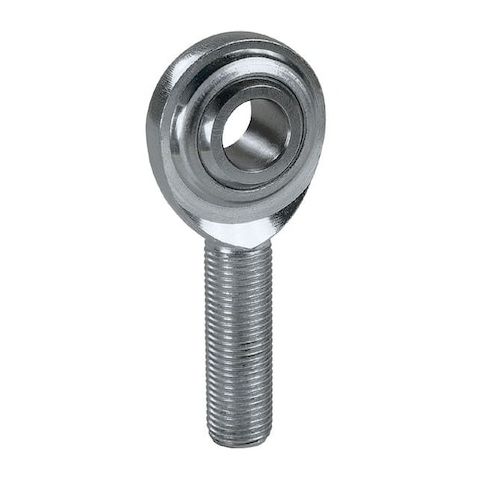

Male, SS/PTFE Race Rod End, LH, 8/8.065mm MPN:MGML8T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5801223
Male, SS/PTFE Race Rod End, LH, 8/8.065mm
This high-performance Male, SS/PTFE Race Rod End is designed for light duty applications where precision and durability are crucial. Made with stainless steel and PTFE, it provides a smooth, low-friction movement and resists corrosion. The spherical design allows for 28 degrees of ball swivel, enabling precise control and flexibility. Suitable for a range of industries, including automotive, aerospace, and industrial equipment, this rod end is ideal for applications such as suspension systems, steering components, and other critical motion control systems. Its compact size and precision engineering make it a reliable choice for demanding environments.
Top product features:
- Spherical design allows for smooth and flexible movement in any direction.
- Chrome plating on the housing provides corrosion resistance and durability.
- Thread direction is left-hand, allowing for secure and consistent tightening.
Top product applications:
- Light Duty
- Spherical Rod End
- Maximum Ball Swivel 28 Degrees
Spherical Rod End, System of Measurement Metric, Bore Diameter 8 mm, Head Outside Diameter 22.25 mm, Head Width 8 mm, Shank Thread Length 25 mm, Shank Thread Size M8x1.25, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 15.88 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 12 mm, Maximum Ball Swivel 28 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.85
- Package Width: 1.06
- Package Height: 0.47
- Package Weight: 0.07
Product info last updated on February 25, 2026 9:07pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
