Female, SS/PTFE Race Rod End, RH, 6/6.065mm MPN:MGFR6T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5782235
Female, SS/PTFE Race Rod End, RH, 6/6.065mm

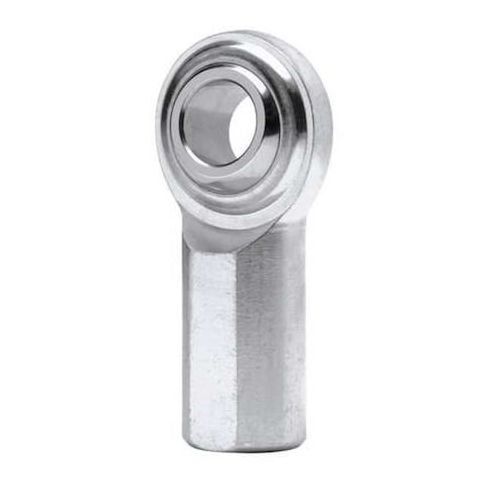

The QA1 Female, SS/PTFE Race Rod End is a high-performance spherical rod end designed for light duty applications. Its stainless steel housing and 440C stainless steel ball provide exceptional strength and corrosion resistance. The rod end features a right-hand thread and a maximum ball swivel of 23 degrees, allowing for smooth and precise movement. Ideal for use in automotive, industrial, and aerospace applications, this rod end offers reliable performance and durability in demanding environments. Its compact size and lightweight design make it an excellent choice for a variety of applications, including steering, suspension, and motion control systems.
Top product features:
- Spherical design allows for smooth movement and flexibility in applications
- Stainless steel housing provides corrosion resistance and durability
- Right-hand thread direction allows for secure and consistent mounting
Top product applications:
- Light Duty
- Automotive
- Industrial Equipment
Spherical Rod End, System of Measurement Metric, Bore Diameter 6 mm, Head Outside Diameter 19 mm, Head Width 6.25 mm, Shank Thread Length 14 mm, Shank Thread Size M6x1.0, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 12.7 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 9 mm, Maximum Ball Swivel 23 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.75
- Package Width: 0.35
- Package Height: 1.56
- Package Weight: 0.06
Product info last updated on February 3, 2026 9:09am UTC
Category: Bearings, V-belts and Power Transmission Equipment
