Female, SS/PTFE Race Rod End, LH, 6/6.065mm MPN:MGFL6T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5581633

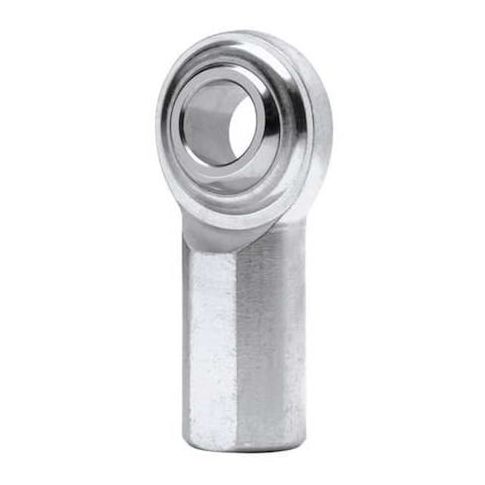

Female, SS/PTFE Race Rod End, LH, 6/6.065mm
This Female SS/PTFE Race Rod End is a high-performance component designed for light-duty applications, offering a reliable and durable solution for various industries. The spherical design provides smooth movement and flexibility, while the stainless steel housing and 440C stainless steel ball ensure corrosion resistance and long-lasting performance. With a maximum ball swivel of 23 degrees, this rod end is ideal for applications where precision and stability are crucial, such as in automotive, aerospace, and industrial equipment manufacturing. Its compact size and lightweight design make it easy to integrate into a wide range of systems and machinery.
Top product features:
- Spherical design allows for 23 degrees of ball swivel, enabling smooth movement and flexibility.
- Stainless steel and chrome-plated housing provide corrosion resistance and durability.
- Threaded shank with M6x1.0 thread size and left-hand direction allows for secure and adjustable mounting.
Top product applications:
- Light Duty
- Suspension Systems
- Racing Applications
Spherical Rod End, System of Measurement Metric, Bore Diameter 6 mm, Head Outside Diameter 19 mm, Head Width 6.25 mm, Shank Thread Length 14 mm, Shank Thread Size M6x1.0, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 12.7 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 9 mm, Maximum Ball Swivel 23 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.56
- Package Width: 0.75
- Package Height: 0.35
- Package Weight: 0.06
Product info last updated on February 3, 2026 2:27am UTC
Category: Bearings, V-belts and Power Transmission Equipment
