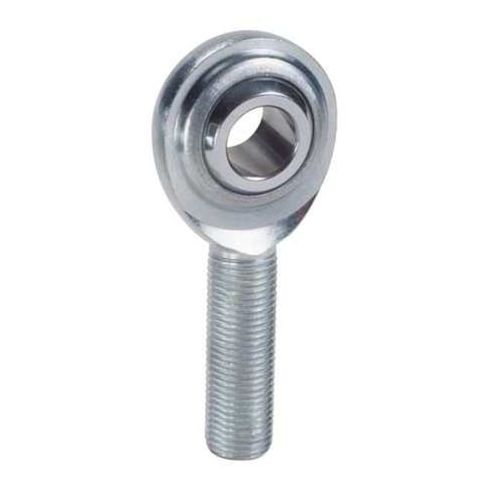

Male, Rod End, LH, 16/16.065mm MPN:MCML16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5519062
Male, Rod End, LH, 16/16.065mm
This high-quality male rod end from QA1 is designed for light-duty applications, providing smooth and precise movement in a variety of systems. With a spherical design and alloy steel ball, it offers excellent durability and resistance to wear and tear. The carbon steel housing is chrome plated for added corrosion protection, while the M16x2.0 thread size ensures secure attachment. Suitable for use in industrial, automotive, and aerospace applications, this rod end is perfect for suspension systems, steering components, and other critical systems where smooth movement is essential. Its compact size and lightweight design make it easy to integrate into a wide range of applications.
Top product features:
- Spherical design allows for smooth, 33-degree ball swivel motion
- Carbon steel housing provides durability and strength
- Alloy steel balls with 52100 grade material ensure high wear resistance and smooth operation
Top product applications:
- Light Duty
- Machine Tool
- Industrial Equipment
Spherical Rod End, System of Measurement Metric, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 40 mm, Shank Thread Size M16x2.0, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 28.58 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 21 mm, Maximum Ball Swivel 33 Degrees , Overall Length 85 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.60
- Package Height: 0.90
- Package Weight: 0.35
Product info last updated on January 19, 2026 11:29pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
