Female, SS/PTFE Rod End, LH, 16/16.065mm MPN:MGFL16T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5498096
Female, SS/PTFE Rod End, LH, 16/16.065mm

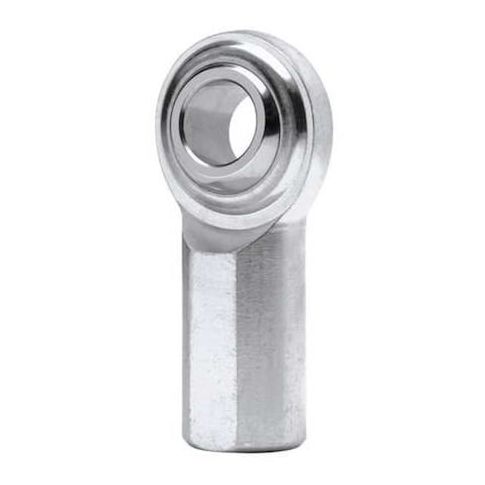

This Female, SS/PTFE Rod End is a versatile spherical bearing designed for light-duty applications in metric systems. With a stainless steel housing and chrome-plated finish, it provides excellent corrosion resistance and durability. The rod end features a 16mm bore diameter, M16x2.0 left-hand thread, and a 33-degree maximum ball swivel range. Suitable for use in a variety of industries, including automotive, aerospace, and industrial equipment, this rod end offers reliable performance and smooth motion control. Its compact design and low weight make it an ideal choice for applications where space and weight are a concern.
Top product features:
- Spherical movement allows for 33 degrees of ball swivel.
- Stainless steel housing provides corrosion resistance.
- 440C stainless steel balls offer high hardness and wear resistance.
Top product applications:
- Light Duty
- Machine Assembly
- Heavy Duty Machinery
Spherical Rod End, System of Measurement Metric, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 33 mm, Shank Thread Size M16x2.0, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 28.58 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 21 mm, Maximum Ball Swivel 33 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.83
- Package Weight: 0.50
Product info last updated on April 5, 2026 10:21am UTC
Category: Bearings, V-belts and Power Transmission Equipment
