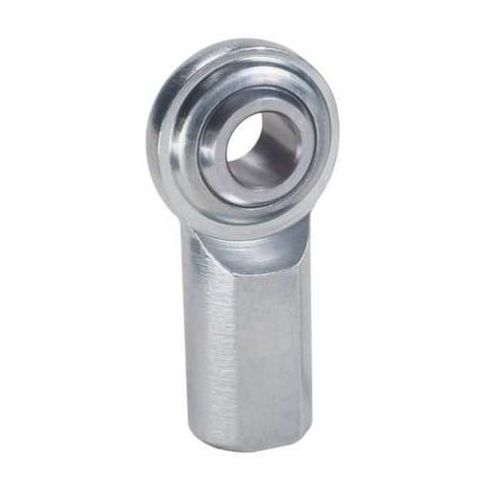

Female Rod End, LH, 5/16-24 MPN:CFL5
Female Rod End, LH, 5/16-24
The QA1 Female Rod End is a high-quality, left-hand threaded spherical bearing designed for light-duty applications. Its carbon steel housing is chrome plated for added durability and corrosion resistance, while the alloy steel ball is precision-ground to ensure smooth operation. The rod end features a 5/16-24 thread size and a maximum ball swivel of 22 degrees, making it ideal for use in a variety of industries, including automotive, aerospace, and industrial machinery. Its compact size and lightweight design make it perfect for applications where space and weight are a concern, such as in steering systems, suspension components, and other motion control applications.
Top product features:
- Spherical design allows for smooth rotation and flexibility in applications.
- Carbon steel housing provides durability and resistance to wear and tear.
- Chromed-plated finish reduces friction and wear on moving parts.
Top product applications:
- Light Duty
- Light Industrial
- Automotive
Spherical Rod End, System of Measurement Inch, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.312 in, Shank Thread Length 5/8 in, Shank Thread Size 5/16 In.-24, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.625 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.437 in, Maximum Ball Swivel 22 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.44
- Package Weight: 0.08
Product info last updated on February 3, 2026 4:23pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
