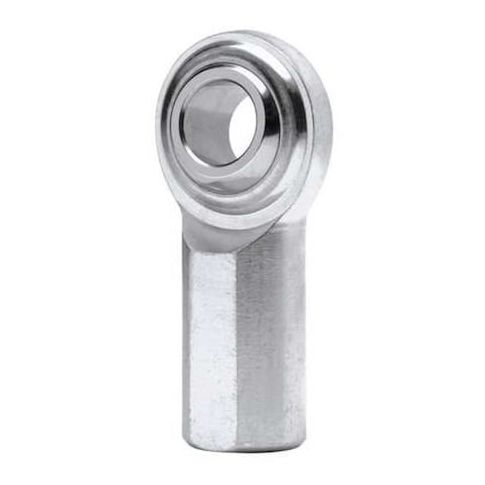

Spherical Rod End, Female Plain, 3/8 in Bore Dia, Right Hand Thread, Stainless Steel, PTFE MPN:GFR6T
Spherical Rod End, Female Plain, 3/8 in Bore Dia, Right Hand Thread, Stainless Steel, PTFE
This Spherical Rod End features a 3/8 in bore diameter and right-hand thread, making it ideal for light-duty applications where flexibility and precision are required. The stainless steel construction with chrome plating ensures durability and resistance to corrosion, while the PTFE coating reduces friction and wear. With a maximum ball swivel of 22 degrees, this rod end provides excellent mobility and stability in a variety of settings, including industrial machinery, automotive, and aerospace applications. Its compact size and lightweight design make it easy to integrate into complex systems, offering a reliable and efficient solution for a range of motion requirements.
Top product features:
- Spherical design allows for smooth rotation and movement in multiple directions.
- Right-hand thread enables easy installation and secure fastening.
- PTFE coating reduces friction and wear on moving parts.
Top product applications:
- Light Duty
- Automotive
- Industrial
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/8 in, Head Outside Diameter 1 in, Head Width 0.359 in, Shank Thread Length 3/4 in, Shank Thread Size 3/8 In.-24, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.719 in, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.0015/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.5 in, Maximum Ball Swivel 22 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on February 24, 2026 12:34am UTC
Category: Bearings, V-belts and Power Transmission Equipment
