Metric Greasable Precision Rod End MPN:MHMR20Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G510191998

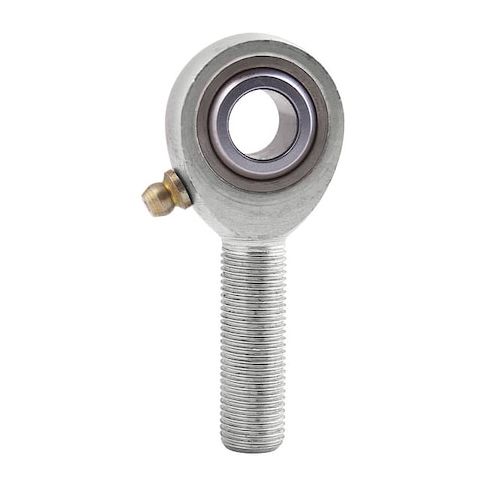

Metric Greasable Precision Rod End
Upgrade your automotive suspension system with the Metric Greasable Precision Rod End from QA1. This high-performance rod end bearing features a chromoly steel housing, 52100 steel spherical balls, and a M20x1.5 right-hand thread, ensuring smooth and precise movement. Ideal for applications requiring high load capacities and minimal friction, such as racing, off-road, or high-performance driving. The rod end bearing's metric system and greasable design make it easy to maintain and adjust, while its compact size and lightweight construction minimize weight and maximize stability. Perfect for upgrading or repairing your vehicle's suspension system for improved handling and performance.
Top product features:
- Greasable design allows for easy maintenance and lubrication of the rod end bearing
- Ball stud center length of 78 mm provides a specific range of motion and stability
- Chromoly steel housing material provides high strength and durability
Top product applications:
- Automotive
- Radial Load Direction
- Metric Greasable Precision Rod End
Rod End Bearing, System of Measurement Metric, Ball Stud Center Length 78 mm, Bore Diameter 20 mm, Head Outside Diameter 46 mm, Head Width 18 mm, Shank Thread Length 47 mm, Shank Thread Size M20x1.5, Housing Material Chromoly Steel, Shank Thread Direction Right Hand, Application Automotive, Ball Diameter 34.93 mm, Ball Material 52100 Steel Spherical, Ball Material Grade 52100, Bore Diameter Tolerance -0.012/+0.065 mm, Housing Material Finish Chrome, Inner Ring Width 25 mm, Load Direction Radial
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 1.10
- Package Weight: 0.73
Product info last updated on February 3, 2026 11:27pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
