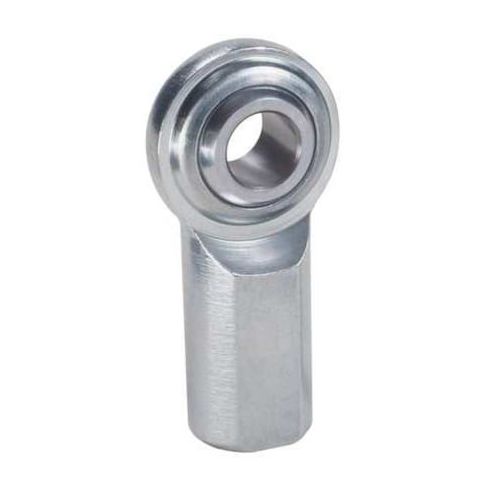

Spherical Rod End, Female Plain, 3/4 in Bore Dia, Right Hand Thread, Carbon Steel MPN:CFR12
Spherical Rod End, Female Plain, 3/4 in Bore Dia, Right Hand Thread, Carbon Steel
This Spherical Rod End features a 3/4 inch bore diameter and a 1 3/4 inch head outside diameter, making it suitable for a variety of applications, including light duty use. The carbon steel housing with chrome plating ensures durability and resistance to corrosion. The alloy steel ball with a 52100 grade rating provides smooth operation and long-lasting performance. With a maximum ball swivel of 24 degrees, this rod end allows for flexibility and movement in tight spaces. Ideal for use in machinery, equipment, and other mechanical systems, this spherical rod end offers reliable and efficient operation.
Top product features:
- Spherical design allows for smooth rotation and swiveling of the rod end, enabling precise movement and flexibility in applications.
- The 3/4 inch bore diameter provides a sufficient opening for rod or shaft insertion, allowing for easy installation and maintenance.
- The right-hand thread direction facilitates easy installation and removal of the rod end, reducing the risk of cross-threading and damage.
Top product applications:
- Light Duty
- Light Duty
- Light Duty
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/4 in, Head Outside Diameter 1 3/4 in, Head Width 0.593 in, Shank Thread Length 1 1/2 in, Shank Thread Size 3/4 In.-16, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 1.312 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.875 in, Maximum Ball Swivel 24 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.00
- Package Height: 6.00
- Package Weight: 0.65
Product info last updated on March 25, 2026 12:09pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
