Spherical Rod End, Female Plain, 7/16 in Bore Dia, Right Hand Thread, Carbon Steel MPN:CFR7

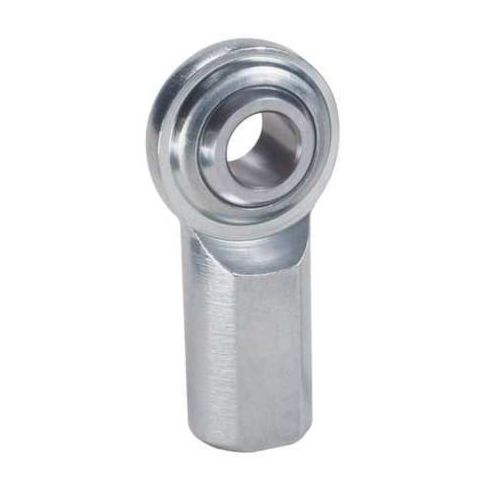

Spherical Rod End, Female Plain, 7/16 in Bore Dia, Right Hand Thread, Carbon Steel
This Spherical Rod End from QA1 is a high-quality component ideal for light-duty applications. Its 7/16 inch bore diameter and right-hand thread make it suitable for various industrial uses, including machinery and equipment assembly. The carbon steel housing provides durability and resistance to wear and tear. The alloy steel ball with a 52100 grade ensures smooth movement and long-lasting performance. With a maximum ball swivel of 21 degrees, this rod end offers flexibility and versatility in design. Its compact size and lightweight design make it easy to integrate into existing systems, making it a reliable choice for a range of applications.
Top product features:
- Spherical design allows for smooth and precise movement in multiple directions.
- Right-hand thread enables easy installation and secure fastening.
- Chrome-plated carbon steel housing provides corrosion resistance and durability.
Top product applications:
- Light Duty
- Automotive
- Industrial Equipment
Spherical Rod End, System of Measurement Inch, Bore Diameter 7/16 in, Head Outside Diameter 1 1/8 in, Head Width 0.406 in, Shank Thread Length 7/8 in, Shank Thread Size 7/16 In.-20, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.812 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.562 in, Maximum Ball Swivel 21 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.20
- Package Height: 0.60
- Package Weight: 0.20
Product info last updated on February 12, 2026 11:38pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
