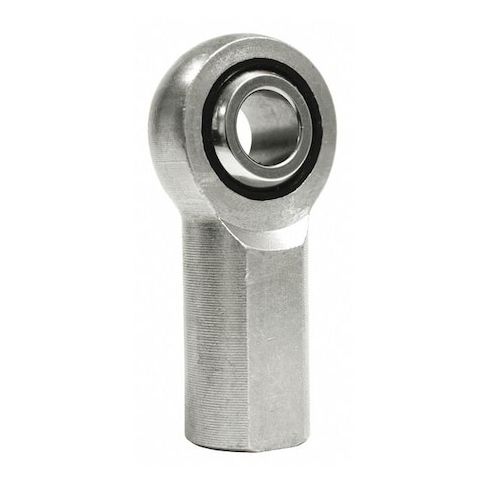

Female Rod End, Nylon/PTFE, LH, 5/16-24 MPN:NFL5
Female Rod End, Nylon/PTFE, LH, 5/16-24
This Female Rod End is designed for low-load, moderate oscillation applications, making it ideal for use in automotive, industrial, and aerospace industries. The nylon/PTFE bushing provides smooth, quiet operation and resistance to wear and corrosion. The left-hand thread and 5/16-24 shank thread size ensure secure mounting. The alloy steel ball and chrome-plated housing offer durability and long lifespan. With a lead time of just one day and a minimum order quantity of one, this rod end is perfect for prototyping, small-scale production, or emergency replacements. Its compact size and lightweight design make it easy to integrate into a wide range of applications.
Top product features:
- It has a left-hand thread direction for ease of installation and reduced risk of cross-threading.
- The spherical design allows for smooth, 360-degree motion and reduces binding and wear on the shaft.
- The rod end is equipped with an alloy steel ball bearing for increased load capacity and reduced friction.
Top product applications:
- Low Load
- Moderate Oscillation
- Low Load, Moderate Oscillation
Spherical Rod End, System of Measurement Inch, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.344 in, Shank Thread Length 3/4 in, Shank Thread Size 5/16 In.-24, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Low Load, Moderate Oscillation, Ball Diameter 0.625 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.437 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.44
- Package Weight: 0.10
