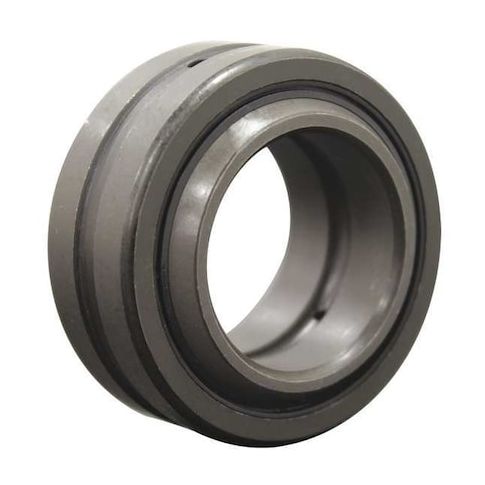

Spher Bearing, 1.0000in. Bore dia., GEZ MPN:GEZ25ES
Spher Bearing, 1.0000in. Bore dia., GEZ
The QA1 GEZ Spher Bearing is a high-performance spherical plain bearing designed for applications requiring precise movement and minimal friction. With a 1.0000in bore diameter and 1.437in ball diameter, this bearing offers a wide range of motion and can withstand heavy loads. Its alloy steel construction and 52100 ball material grade ensure durability and resistance to wear. Suitable for use in industrial, automotive, and aerospace applications, this bearing is ideal for applications such as steering systems, suspension components, and other machinery that requires smooth, reliable movement. Its compact design and low maintenance requirements make it an excellent choice for many industries.
Top product features:
- Liner Material No Liner implies a design choice that allows for maximum load capacity and reduced friction
- Maximum Ball Swivel 6 Degrees allows for smooth and precise movement in a wide range of applications
- Outside Diameter Tolerance +0.0000/0.00035 in ensures a precise fit in tight spaces and reduces the risk of misalignment
Top product applications:
- Automotive applications
- Industrial machinery and equipment
- Robotics and automation systems
Spherical Bearing, Liner Material No Liner, Bore Diameter 1 in, Ball Diameter 1.437 in, Outer Ring Width 0.75 in, Outside Diameter 1 5/8 in, Outer Ring Material Chrome Steel, Ball Material 52100 Bearing Steel, Ball Material Grade AISI 52100, Bore Diameter Tolerance +0.0000/-0.0004 in, Closure Open, Finish Protective Coating, Inner Ring Width 0.875 in, Load Direction Radial, Lubrication Openings Lubrication Hole, Maximum Ball Swivel 6 Degrees , Outside Diameter Tolerance +0.0000/-0.0035 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 3.50
- Package Height: 1.10
- Package Weight: 0.25
Product info last updated on February 3, 2026 9:50am UTC
Category: Bearings, V-belts and Power Transmission Equipment
