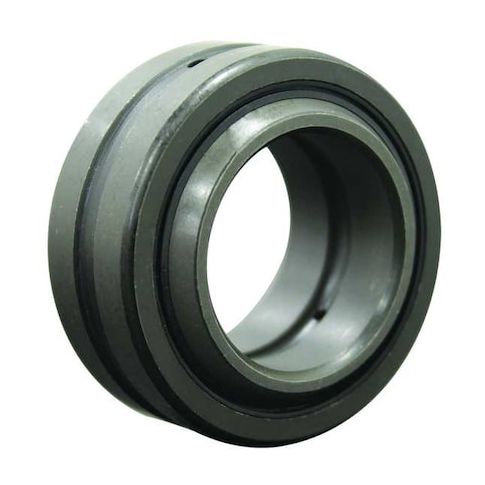

Spher Bearing, 1.2500in. Bore dia., GEZ MPN:45GY20
Spher Bearing, 1.2500in. Bore dia., GEZ
This Spher Bearing from QA1 is a high-performance, alloy steel spherical plain bearing designed for demanding applications. With a 1.2500in. bore diameter and a maximum ball swivel of 6 degrees, it provides smooth, low-friction movement in a wide range of industries. Its open design and protective coating make it easy to install and maintain. Suitable for use in industrial machinery, robotics, and heavy equipment, this bearing delivers long-lasting reliability and reduced wear. Its compact size and low weight make it ideal for space-constrained applications, such as medical devices, aerospace, and automotive systems.
Top product features:
- Spherical Plain Bearing design allows for 6 degrees of ball swivel, enabling smooth and flexible movement.
- The bearing has no liner, allowing for direct contact between the ball and ring, potentially reducing friction and wear.
- The alloy steel construction of the bearing and balls provides high strength and durability.
Top product applications:
- Robotics and Automation
- Automotive and Racing
- Aerospace and Defense
Spherical Plain Bearing, Liner Material No Liner, Bore Diameter 1 1/4 in, Ball Diameter 1.791 in, Outer Ring Width 0.937 in, Outside Diameter 2 in, Outer Ring Material Alloy Steel, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance -0.0005/+0.0000 in, Closure Open, Finish Protective Coating, Inner Ring Width 1.093 in, Lubrication Openings Lubrication Hole, Maximum Ball Swivel 6 Degrees , Outside Diameter Tolerance +0.0000/- 0.0004 in, Overall Width 1.093 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 1.10
- Package Weight: 0.47
Product info last updated on March 8, 2026 5:32pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
