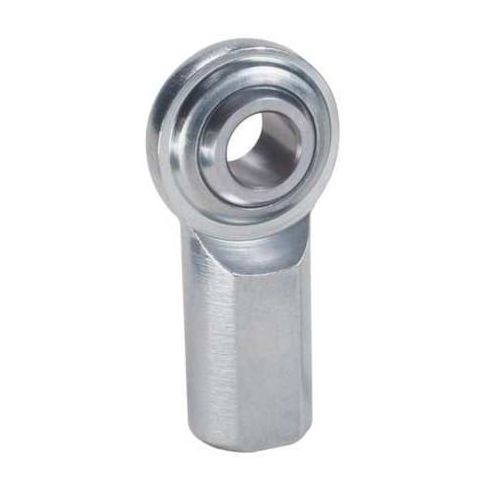

Female, Rod End, LH, 5/5.065mm MPN:MCFL5
Female, Rod End, LH, 5/5.065mm
This female, rod end bearing is designed for light-duty applications and features a spherical design for smooth movement and reduced friction. The left-hand thread allows for easy installation and adjustment. Constructed from carbon steel with a chrome-plated finish, this bearing provides durability and corrosion resistance. With a maximum ball swivel of 22 degrees, it offers a wide range of motion. Suitable for use in various industries, including automotive, aerospace, and industrial machinery, this bearing is ideal for applications where smooth movement and precision are required. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Spherical design allows for smooth and precise movement in multiple directions
- Carbon steel housing with chrome plating provides durability and resistance to corrosion
- Left-hand thread direction enables secure and consistent attachment to components
Top product applications:
- Light Duty
- Automotive
- Industrial Equipment
Spherical Rod End, System of Measurement Metric, Bore Diameter 5 mm, Head Outside Diameter 16 mm, Head Width 5.75 mm, Shank Thread Length 14 mm, Shank Thread Size M5x0.8, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 11.1 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 8 mm, Maximum Ball Swivel 22 Degrees , Overall Length 35 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 0.30
- Package Height: 0.30
- Package Weight: 0.04
Product info last updated on January 31, 2026 12:34am UTC
Category: Bearings, V-belts and Power Transmission Equipment
