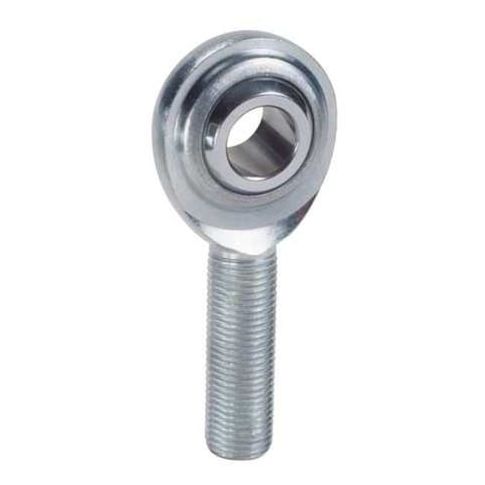

Male, Rod End, LH, 5/5.065mm MPN:MCML5
Male, Rod End, LH, 5/5.065mm
This high-quality male rod end from QA1 is designed for light-duty applications, providing smooth and reliable motion in a compact package. The spherical rod end features a 5mm bore diameter and a left-hand thread, making it ideal for use in a variety of applications such as robotics, automation, and machinery. The alloy steel ball and carbon steel housing ensure durability and resistance to wear and corrosion, while the chrome plated finish provides a smooth and corrosion-resistant surface. With a maximum ball swivel of 22 degrees, this rod end offers precise and reliable motion in a range of environments.
Top product features:
- Spherical design allows for smooth and flexible movement in multiple directions
- Threaded shank provides secure attachment to components
- Ball bearing allows for low-friction movement and reduced wear
Top product applications:
- Light Duty
- Machine Tooling
- Automotive
Spherical Rod End, System of Measurement Metric, Bore Diameter 5 mm, Head Outside Diameter 16 mm, Head Width 5.75 mm, Shank Thread Length 20 mm, Shank Thread Size M5x0.8, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 11.1 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 8 mm, Maximum Ball Swivel 22 Degrees , Overall Length 41 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.32
- Package Weight: 0.10
Product info last updated on January 30, 2026 11:25pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
