Male, Rod End, LH, 8/8.065mm MPN:MCML8
Male, Rod End, LH, 8/8.065mm

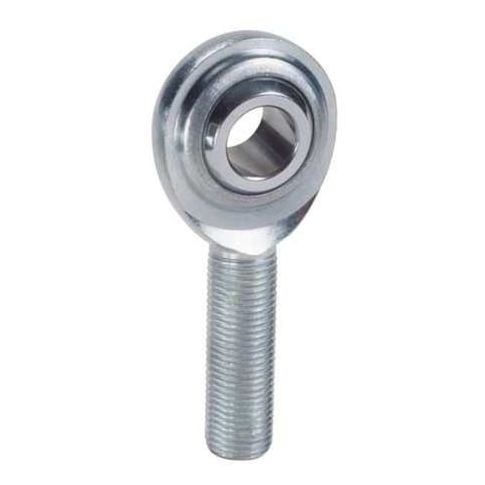

This QA1 male rod end is a high-quality, metric spherical rod end designed for light-duty applications. With a carbon steel housing and alloy steel ball, it offers durability and resistance to wear. The left-hand thread allows for secure mounting and easy installation. The rod end features a chrome-plated finish for added corrosion resistance and a maximum ball swivel of 28 degrees for smooth movement. Ideal for use in a variety of applications, including automotive, industrial, and construction equipment, this rod end provides reliable performance and long-lasting service. Its compact design and lightweight construction make it easy to integrate into any system.
Top product features:
- Spherical design allows for smooth, multi-axis movement
- Carbon steel housing provides strength and durability
- Alloy steel balls with 52100 grade material offer high wear resistance and low friction
Top product applications:
- Light Duty
- Automotive
- Industrial Equipment
Spherical Rod End, System of Measurement Metric, Bore Diameter 8 mm, Head Outside Diameter 22.25 mm, Head Width 8 mm, Shank Thread Length 25 mm, Shank Thread Size M8x1.25, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 15.88 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 12 mm, Maximum Ball Swivel 28 Degrees , Overall Length 53.1 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.00
- Package Height: 0.30
- Package Weight: 0.07
Product info last updated on January 16, 2026 6:53am UTC
Category: Bearings, V-belts and Power Transmission Equipment
