Male, Rod End, LH, 10/10.065mm MPN:MCML10
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2590841

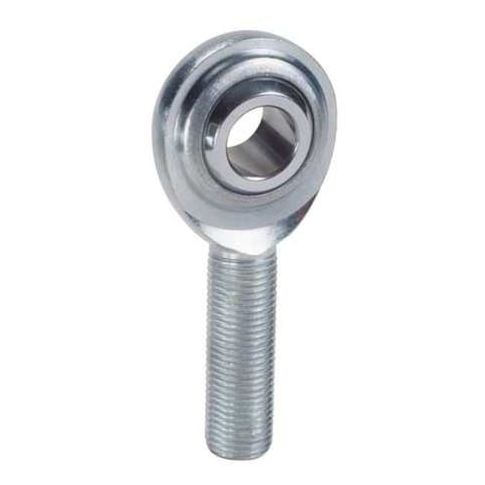

Male, Rod End, LH, 10/10.065mm
This high-quality spherical rod end is designed for light-duty applications, featuring a 10mm bore diameter and a 27mm head outside diameter. The left-hand thread and M10x1.5 thread size provide a secure and reliable connection. The carbon steel housing is chrome plated for added durability and corrosion resistance. With a maximum ball swivel of 26 degrees, this rod end allows for smooth and precise movement. Suitable for use in a variety of industries, including automotive, aerospace, and industrial machinery, this spherical rod end is a reliable and long-lasting solution for applications requiring high precision and accuracy.
Top product features:
- Spherical design provides smooth motion and rotation
- Carbon steel housing with chrome plating offers durability and corrosion resistance
- Left-hand thread direction allows for secure attachment and easy installation
Top product applications:
- Light Duty
- Suspension and steering components
- Racing and high-performance applications
Spherical Rod End, System of Measurement Metric, Bore Diameter 10 mm, Head Outside Diameter 27 mm, Head Width 9.5 mm, Shank Thread Length 29 mm, Shank Thread Size M10x1.5, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 19.05 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 14 mm, Maximum Ball Swivel 26 Degrees , Overall Length 61.5 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.43
- Package Width: 1.06
- Package Height: 0.55
- Package Weight: 0.15
Product info last updated on January 31, 2026 9:57pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
