Metric Greasable Precision Rod End MPN:MHFR14Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G110191688

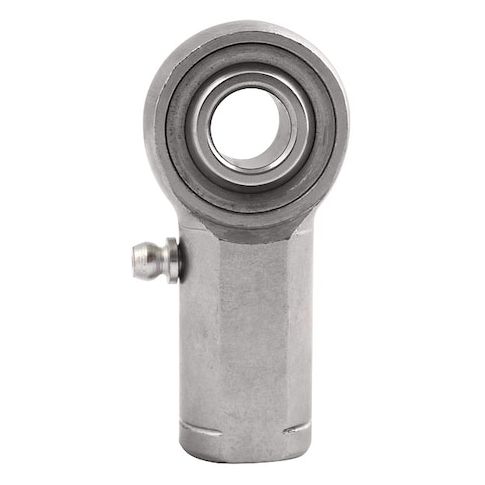

Metric Greasable Precision Rod End
The Metric Greasable Precision Rod End from QA1 is a high-performance component designed for automotive applications. Its precision ball stud and chromoly steel housing ensure smooth operation and durability, even in high-stress environments. The rod end's metric system and adjustable grease ports make it easy to maintain and repair. With its compact design and wide range of applications, this rod end is ideal for racing, suspension, and steering systems, as well as other high-performance automotive components. Its precision engineering and high-quality materials make it a reliable choice for builders and engineers seeking to optimize their vehicle's performance.
Top product features:
- Greasable design allows for easy lubrication and maintenance of the rod end bearing
- Ball stud center length of 57 mm provides stability and support in applications
- Chromoly steel housing material offers high strength and durability
Top product applications:
- Automotive
- Ball Diameter 25.4 mm
- 52100 Steel Spherical
Spherical Rod End, System of Measurement Metric, Ball Stud Center Length 57 mm, Bore Diameter 14 mm, Head Outside Diameter 34.75 mm, Head Width 13.5 mm, Shank Thread Length 27 mm, Shank Thread Size M14x2.00, Housing Material Chromoly Steel, Shank Thread Direction Right Hand, Application Automotive, Ball Diameter 25.4 mm, Ball Material Alloy Steel, Ball Material Grade AISI 52100, Bore Diameter Tolerance +0.065/-0.012 mm, Housing Material Finish Chrome, Inner Ring Width 19 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 0.90
- Package Weight: 0.43
Product info last updated on February 4, 2026 3:03am UTC
Category: Bearings, V-belts and Power Transmission Equipment
