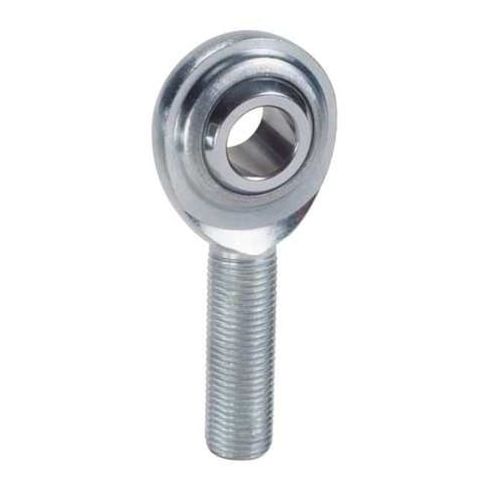

Male Rod End, LH, No 10-32 MPN:CML3
Male Rod End, LH, No 10-32
This QA1 Male Rod End is a versatile component designed for light duty applications. Its left-hand thread and 10-32 size make it suitable for a variety of uses, including automotive, industrial, and aerospace projects. The rod end features a chrome-plated carbon steel housing and an alloy steel ball with a 52100 grade, ensuring durability and resistance to wear. Its compact size, measuring 5/8 inches in head diameter and 3/16 inches in bore diameter, allows for easy installation in tight spaces. The rod end's 20-degree ball swivel capability provides a wide range of motion, making it ideal for applications requiring flexibility and stability.
Top product features:
- Spherical design allows for smooth rotation and movement in multiple directions.
- The #10-32 thread size provides a secure and precise connection to other components.
- The ball material, 52100 alloy steel, ensures durability and resistance to wear and tear.
Top product applications:
- Light Duty
- General Purpose
- Automotive
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head Width 0.234 in, Shank Thread Length 3/4 in, Shank Thread Size #10-32, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.437 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.312 in, Maximum Ball Swivel 20 Degrees
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.00
- Package Height: 0.70
- Package Weight: 0.03
Product info last updated on February 2, 2026 6:02am UTC
Category: Bearings, V-belts and Power Transmission Equipment
