Metric Greasable Precision Rod End MPN:MHFR14Z-1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G010191801

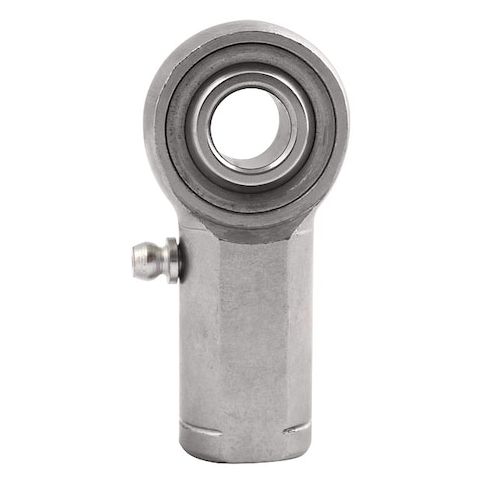

Metric Greasable Precision Rod End
Upgrade your automotive suspension system with the Metric Greasable Precision Rod End from QA1. This high-quality rod end bearing features a 57mm ball stud center length and 14mm bore diameter, ensuring precise movement and durability. The alloy steel housing and 52100 steel ball provide exceptional strength and resistance to wear. Ideal for automotive applications, this precision rod end bearing offers improved handling and stability, making it perfect for racing, off-road, or high-performance vehicles. With its metric system of measurement and right-hand thread direction, it's easy to integrate into your existing suspension system.
Top product features:
- Metric Greasable Precision Rod End bearing has a ball stud center length of 57 mm.
- The rod end bearing has a bore diameter of 14 mm.
- The rod end bearing features a spherical ball made of 52100 steel.
Top product applications:
- Automotive
- Ball Diameter 25.4 mm, Ball Material 52100 Steel Spherical, Ball Material Grade 52100
- Load Direction Radial
Rod End Bearing, System of Measurement Metric, Ball Stud Center Length 57 mm, Bore Diameter 14 mm, Head Outside Diameter 34.75 mm, Head Width 13.5 mm, Shank Thread Length 27 mm, Shank Thread Size M14x1.5, Housing Material Alloy Steel, Shank Thread Direction Right Hand, Application Automotive, Ball Diameter 25.4 mm, Ball Material 52100 Steel Spherical, Ball Material Grade 52100, Bore Diameter Tolerance -0.012/+0.065 mm, Inner Ring Width 19 mm, Load Direction Radial
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.50
- Package Height: 0.90
- Package Weight: 0.45
Product info last updated on March 29, 2026 6:16pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
