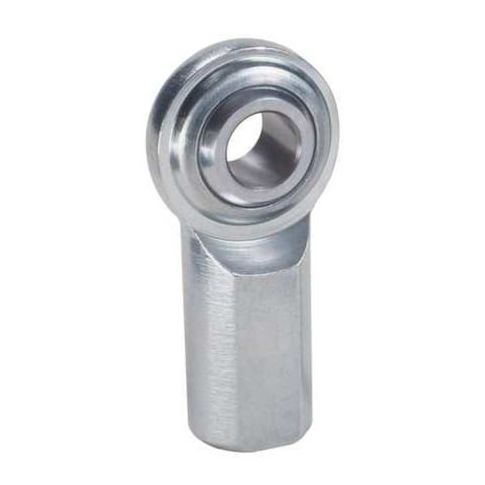

Female, Rod End, LH, 8/8.065mm MPN:MCFL8
Female, Rod End, LH, 8/8.065mm
This QA1 Female, Rod End, LH, 8/8.065mm is a versatile and reliable component ideal for various applications, including light-duty machinery and equipment. The spherical design allows for smooth movement and rotation, while the alloy steel ball and carbon steel housing provide durability and resistance to wear and tear. The left-hand thread and metric system ensure precise installation and compatibility. With a maximum ball swivel of 28 degrees, this rod end facilitates smooth motion and minimizes friction. Suitable for use in a range of industries, including automotive, aerospace, and manufacturing, this component is a valuable addition to any mechanical system.
Top product features:
- Spherical design allows for smooth rotation and movement in any direction.
- Chrome plated housing provides corrosion resistance and durability.
- Ball diameter of 15.88 mm enables a maximum ball swivel of 28 degrees, allowing for a wide range of motion.
Top product applications:
- Light Duty
- Automotive
- Industrial Equipment
Spherical Rod End, System of Measurement Metric, Bore Diameter 8 mm, Head Outside Diameter 22.25 mm, Head Width 8 mm, Shank Thread Length 17 mm, Shank Thread Size M8x1.25, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 15.88 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 12 mm, Maximum Ball Swivel 28 Degrees , Overall Length 47.1 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 0.90
- Package Height: 0.50
- Package Weight: 0.11
Product info last updated on February 28, 2026 12:40pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
