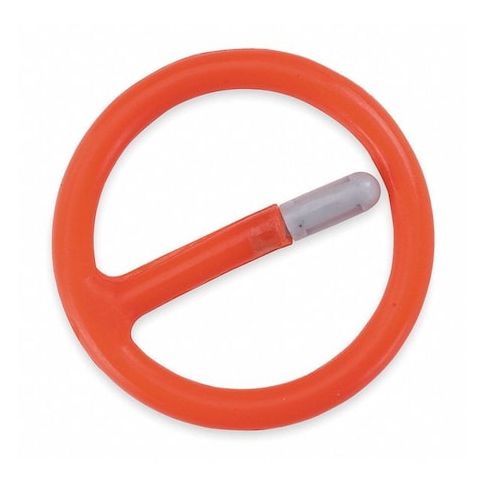

3/4" Drive, 1 5/8 in Groove dia, 1.81 in Hub dia SAE Socket, 6, 12 Points MPN:JRR07526
Free Shipping
In Stock
Proto's retaining rings provide a secure fit for 3/4in drive sockets, ensuring optimal performance and preventing excessive wear. These resin crush gauges indicate when a socket is worn and needs to be replaced, preventing damage to tools and equipment. One-piece construction with a resin pin eliminates loose parts and allows for compression without breaking. Ideal for use in various industries, including automotive, aerospace, and manufacturing, these retaining rings ensure a precise fit and reliable operation, extending the lifespan of drive tools and sockets. They are suitable for applications where precision and reliability are crucial.
Top product features:
- The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced.
- Drive tool and socket should line up when in use and should not pinch the crush gauge.
- The pin is made of resin which allows the material to compress without breaking.
Top product applications:
- General purpose socket use
- Automotive repair and maintenance
- Heavy-duty industrial applications
Retaining rings are used to help secure sockets onto drive tools
They are not intended to bear any load
The rotational forces are between the drive tool and the socket
Additional Features:
- - The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
- - Drive tool and socket should line up when in use and should not pinch the crush gauge
- - Cracked sockets and/or worn drive tools cause each other to turn excessively in relation to each other. This action pinches the small fin or the crush gauge on these retaining rings. If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced
- - One-piece construction, no loose parts. Pin is made of resin which allows the material to compress without breaking
- - Part numbers are embossed on the rings near the point at which the pin and ring meet
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 5.50
- Package Height: 1.80
- Package Weight: 0.16
