Benchtop Dot Peen Marking Machine (78702), Pneumatic Percussion Marking MPN:78702

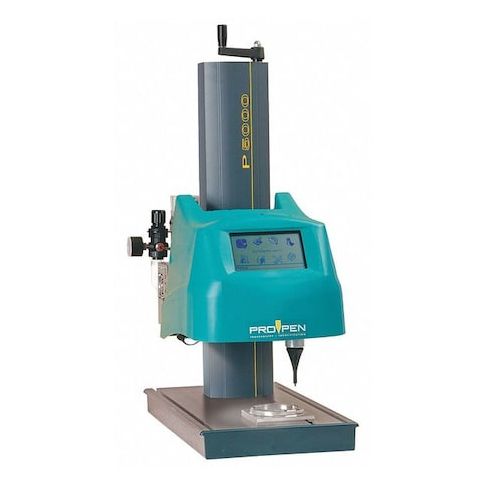

The PROPEN 78702 Pneumatic Benchtop Dot Peen Marker is a percussion marking machine designed for precise, permanent marking on metals and plastics. It operates on a pneumatic system at 79.77 psi and supports marking on aluminum, brass, copper, stainless steel, and steel up to 63 HRC. The unit provides a marking area of 4-5/16 in × 1-1/2 in with adjustable depth between 0.005 in and 0.015 in. It uses an X-Y axis motion and features a narrow-angle stylus with a carbonite cutter for consistent engraving results.

Key Features:

• - Marking Area: 4-5/16 in × 1-1/2 in (X-Y axis operation)
• - Marking Depth: Adjustable from 0.005 in to 0.015 in
• - Character Height Range: 0.02 in to 3.937 in
• - Workpiece Height Capacity: Up to 12-3/16 in
• - Material Compatibility: Aluminum, brass, copper, plastic, stainless steel, steel (up to 63 HRC)
• - Cutter Material: Carbonite, 7/64 in diameter
• - Power Requirements: 110/230V, single phase, 50/60 Hz
• - Air Pressure Requirement: 79.77 psi
• - Interface: P05 internal software, RS232, and dual USB ports
• - Features: Turnkey Z-axis, narrow-angle stylus, start-up CD included
• - Noise Level: 81.4 dB
• - Dimensions: 28-7/8 in H × 12-7/8 in W × 23-3/4 in D
