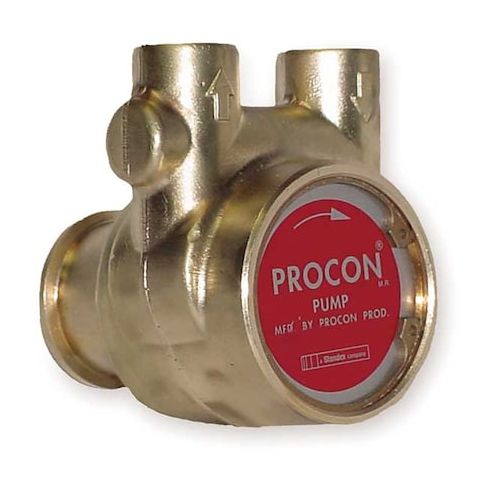

Pump, Rotary Vane, Brass, Max. Flow (GPH): 346 MPN:114B330F11XX
Pump, Rotary Vane, Brass, Max. Flow (GPH): 346
This rotary vane pump is designed for efficient and reliable operation in a variety of applications. With a maximum flow rate of 346 gallons per hour and a maximum head of 6 feet, it can handle demanding tasks with ease. Suitable for use in carbonation systems, it features a carbonator clamp mounting type and is compatible with a 48Y NEMA motor frame. The pump is NSF 169 listed, ensuring compliance with industry standards. Its compact design and durable construction make it an ideal choice for a range of industries, including food and beverage, pharmaceutical, and chemical processing.
Top product features:
- Rotary Vane Pump design allows for high flow rates, with a maximum flow rate of 330 gph.
- The pump is capable of producing up to 6 ft of head pressure.
- The pump features a carbon vane material for durability and resistance to wear.
Top product applications:
- Carbonation systems
- Dishwashing machines
- Ice makers
Rotary Vane Pump, Flow Rate - Maximum 330 gph, Feet of Head - Maximum 6 ft of head, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Discharge Connection Size 1/2 in, Discharge Connection Type NPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type No, NSF 169 Listed Yes, Operating Pressure - Maximum 250 psi, Operating Temperature - Minimum -4 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 4.50
- Package Height: 5.10
- Package Weight: 3.55
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on February 26, 2026 4:32pm UTC
Category: Positive Displacement Pumps
