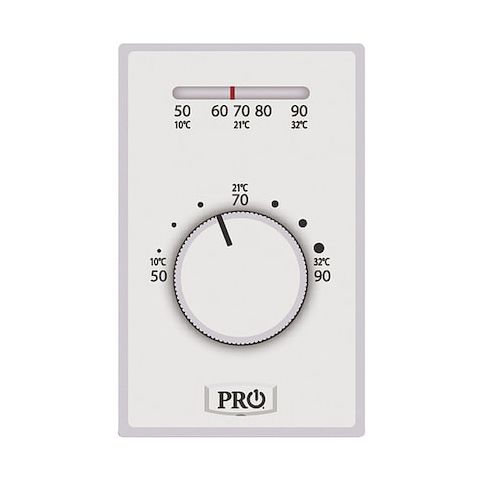

Line Voltage Mechanical Thermostat, Heat Only, 50 to 90F, Exposed Dial, 120/277V AC, Hardwired, 1 Pole MPN:T501ML2
Line Voltage Mechanical Thermostat, Heat Only, 50 to 90F, Exposed Dial, 120/277V AC, Hardwired, 1 Pole
This Line Voltage Mechanical Thermostat is a reliable and efficient heat-only thermostat designed for applications where precise temperature control is essential. Suitable for use in commercial and industrial settings, it provides a temperature range of 50 to 90°F with a differential of 3°F. The exposed dial allows for easy manual adjustments, while its hardwired design ensures a secure connection. Ideal for use in spaces such as warehouses, factories, and offices, this thermostat offers a simple and cost-effective solution for maintaining a comfortable and consistent temperature. Its compact size makes it easy to install and integrate into existing systems.
Top product features:
- Line Voltage Mechanical Thermostat is a Heat Only device, capable of controlling temperatures between 50 to 90F.
- Thermostat Switch Type is SPST, allowing for a simple on/off operation.
- Thermostat has a Bi-Metallic Spring sensor, providing accurate temperature readings.
Top product applications:
- Baseboard Heating Systems
- Commercial or Industrial Buildings
- Older Homes with Radiator Heating Systems
Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 50 Degrees to 90 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 22A, Full Load Amps @ 240VAC 22A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating, Switch Action Open on Rise, Number of Switches 1, Differential 3 Degrees F, Height 4-45/64 in, Width 2-29/32 in, Depth 1 in, Sensor Type Bi-Metallic Spring, Color White
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 2.30
- Package Height: 5.70
- Package Weight: 0.35
Product info last updated on March 1, 2026 6:45pm UTC
Category: HVACR and Appliance Controls
