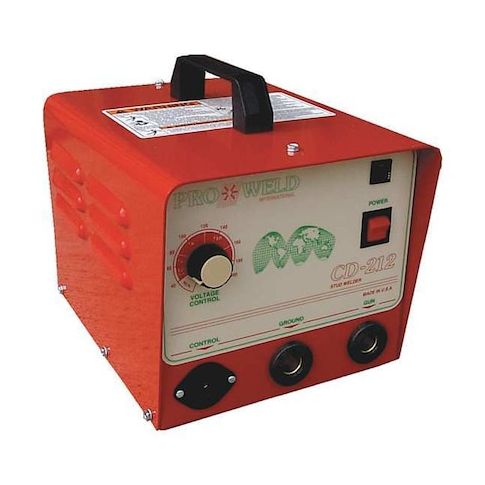

CD-212 Stud Welder, Capacitor Discharge, Single Phase, 14 ga-1/4 in Range MPN:CD-212

• The PRO WELD CD-212 Stud Welder is a capacitor discharge stud welding system designed for use with various metals, including aluminum, brass, copper, galvanized, stainless steel, steel, and zinc-coated materials. Operating on single-phase 110 V AC input, it provides an adjustable output range of 45–195 V DC and features a lightweight, solid-state design. The welder can attach studs from 14 gauge to 1/4 inch diameter to materials as thin as 0.015 inch without burn-through. It comes equipped with a power control unit, weld gun, and ground cable for setup and operation.

  Key Features:

  • - Stud Range: 14 ga to 1/4 in diameter
  • - Input Power: 110 V AC, single-phase, 60 Hz
  • - Rated Output: 45–195 V DC (Capacitance: 66,000 µF)
  • - Weld Rate: Up to 12 studs per minute
  • - Material Compatibility: Aluminum, brass, copper, galvanized, stainless steel, steel, zinc-coated materials
  • - Included Components: Ground cable, power control unit, weld gun
  • - Dimensions: 11.75 in L × 9 in W × 8.5 in H
  • - Weight: 26 lb
  • - Cables: #4 AWG 25 ft gun cable and #4 × 15 ft work cable
  • - Features: Solid-state capacitor discharge system
  • designed and built in the USA
