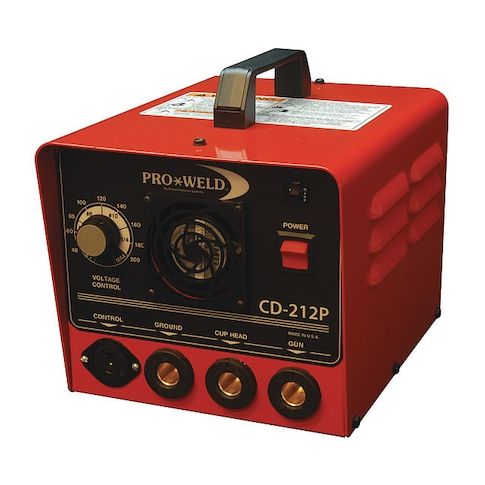

Stud Welder: 110 V AC, 60 Hz, For 1/4 in Max Stud Dia MPN:CD-212P
This Stud Welder is a compact and versatile solution for stud welding applications on thin and thick base materials. It uses a solid-state capacitor discharge process to weld studs with diameters up to 1/4 in and base material thicknesses up to 1/4 in. The unit is compatible with a wide range of materials, including steel, stainless steel, aluminum, and more. With an adjustable output and high weld rate, this Stud Welder is ideal for applications in manufacturing, repair, and maintenance, offering increased efficiency and productivity. It is perfect for industries such as automotive, aerospace, and construction.
Top product features:
- Welding Process: Capacitive discharge stud welding.
- Stud Size Range: Supports studs from 14 ga up to 1/4 in diameter.
- Output Range: Adjustable output from 45V DC to 200V DC with 66,000 µF capacitance.
Top product applications:
- Assembly of thin and thick steel parts
- Installation of electrical components on metal substrates
- Attachment of metal accessories to machinery and equipment
This item is a single-phase capacitive discharge stud welder used for stud welding applications on thin and thick base materials. It operates on 110V AC input power and uses a solid-state capacitor discharge process to weld studs within a specified diameter and material thickness range. The unit is compact in size and includes the primary components required for operation.
Key Features:
- Welding Process: Capacitive discharge stud welding.
- Stud Size Range: Supports studs from 14 ga up to 1/4 in diameter.
- Material Thickness Range: Compatible with base material thicknesses from approximately 0.015 in up to 1/4 in.
- Electrical Requirements: Operates on 110V AC, single-phase, 60 Hz power.
- Output Range: Adjustable output from 45V DC to 200V DC with 66,000 µF capacitance.
- Weld Rate: Rated for up to 12 welds per minute at 1/4 in stud size.
- Included Components: Supplied with weld gun, power control unit, ground cable, and work and gun cables.
- Material Compatibility: Supports welding to steel, stainless steel, aluminum, brass, copper, galvanized, and zinc-coated materials.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.30
- Package Width: 16.30
- Package Height: 16.10
- Package Weight: 45.40
